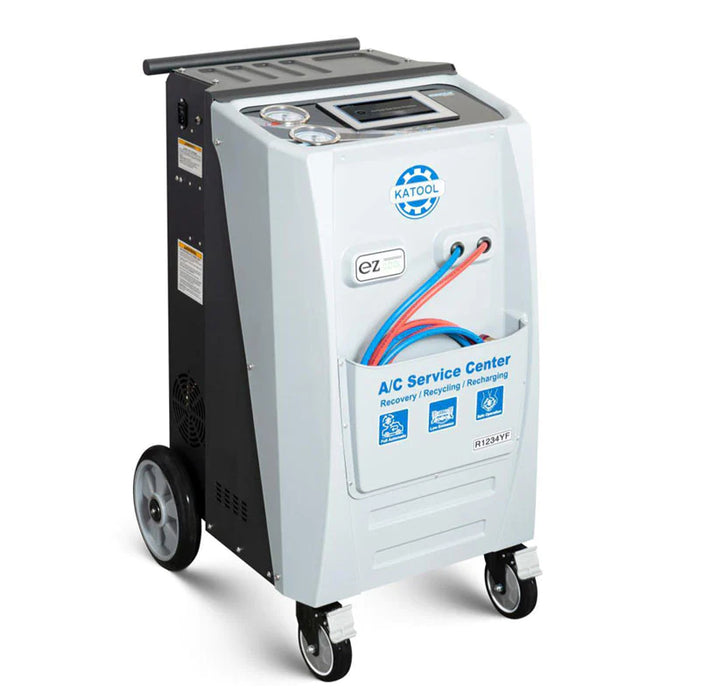

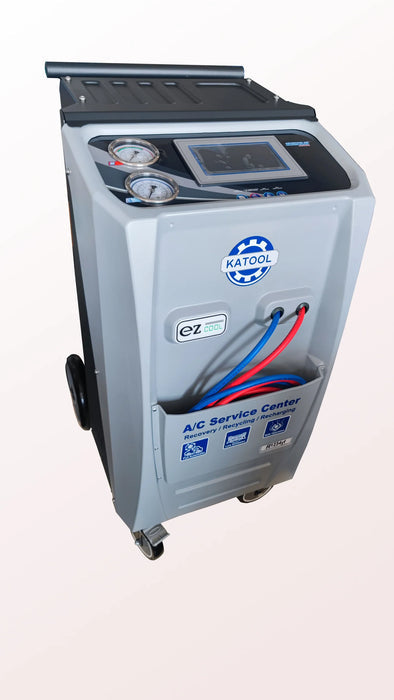

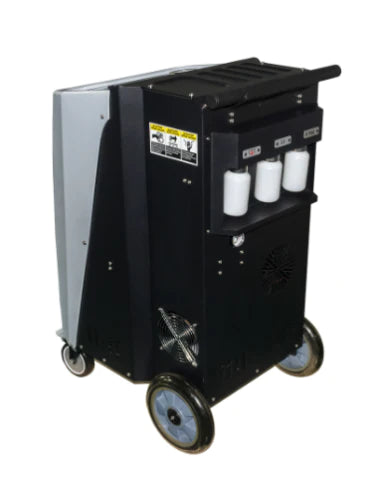

Katool Fully Automatic R-1234YF Recovery, Recycle & Recharge DUAL Machine KT-AC2100
The Katool Fully Automatic R-1234YF Recovery, Recycle & Recharge DUAL Machine KT-AC2100 is a fully automatic A/C service machine engineered for vehicles using R-1234YF refrigerant. It provides complete recovery, recycling, and recharging functions in one unit and is capable of recovering at least 95% of refrigerant in under 30 minutes under standard temperature conditions. Equipped with a dual-stage vacuum pump (3.6 CFM / 120 L/min) and a hermetically sealed 1/3 HP compressor, the machine delivers dependable performance for a wide range of vehicles, including domestic, imported, hybrid, and electric models.
Designed for accuracy and ease of use, the AC2100 utilizes advanced load-cell technology to ensure precise refrigerant and oil charging with an accuracy of ±0.5 oz (15 g). A 7-inch high-resolution touchscreen provides intuitive operation, while built-in features such as a printer, SD-card database compatibility, vacuum test mode, and an enhanced fan and condenser system streamline workflow and improve efficiency in professional service environments.
Additional technical highlights include a 0.5 cu ft (14.3 L) internal tank, durable 9.8 ft (3 m) SAE-standard hoses, a high-capacity filter-drier rated for 175 lbs (80 kg), and a recovery rate of approximately 39.7 lbs per hour. With its strong performance, high accuracy, and user-friendly design, the Katool AC2100 is an ideal solution for automotive shops seeking a reliable and efficient machine for R-1234YF A/C service.
Eco-Friendly AC Service: Katool R-1234YF Recovery & Recharge Machine (AC2100)
Effortless & Efficient A/C Care:
-
Fast & Complete Recovery: 95% refrigerant recovery in under 30 minutes minimizes downtime.
-
Works on All Cars: Supports domestic, foreign, electric, and hybrid vehicles.
-
Precise Recharging: ±0.5 oz accuracy ensures proper A/C performance.
-
User-Friendly Touchscreen: 7-inch display simplifies operation.
-
Extra Features: Built-in printer, optional heating belt, and more (see specifications).
The Katool R-1234YF Recovery & Recharge Machine (AC2100) is the perfect solution for auto repair shops and eco-conscious technicians seeking a comprehensive and user-friendly solution for automotive A/C service.
Features
-
Ultra-Fast Recovery: Recover 95% of refrigerant in less than 30 minutes.
-
Broad Vehicle Compatibility: Service any car, including electric and hybrid models.
-
Exceptional Accuracy: Charge refrigerant with ±0.5 oz precision using advanced loadcell technology.
-

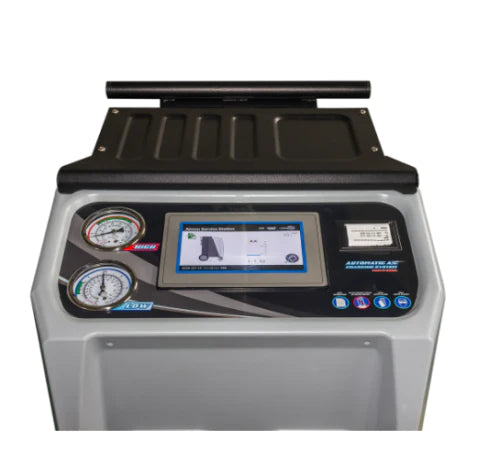

Intuitive Touchscreen: Navigate machine functions easily with a 7" high-quality touch display.
-
Optional Features: Enhance your service with a built-in printer, heating belt, SD database support, and more (sold separately).
Note: Heating belt is an optional feature.
12 Months All Parts Warranty
Specifications
-
Refrigerant: R1234YF
-
Voltage: 110V AC, 60 Hz
-
Recovery Performance: Min. 95% in under 30 minutes (70-75°F)
-
Charge Performance: ±0.5 oz (15 g) (70-75°F)
-
Operating Temperature: 41-122°F (5-50°C)
-
Maximum Pressure: 18 bar
-
Filter-Drier Capacity: 175 lbs (80kg)
-
Loadcell Accuracy (Gas & Oil): 0.04 oz / 66 lbs (1 g / 30 kg)
-
Vacuum Gauge Accuracy: 1 mBar / 1000 mBar
-
Recovery Speed: 39.7 lbs/hour (18 kg/h)
-
Charge Speed: 2.2 lbs/minute (1 kg/min)
-

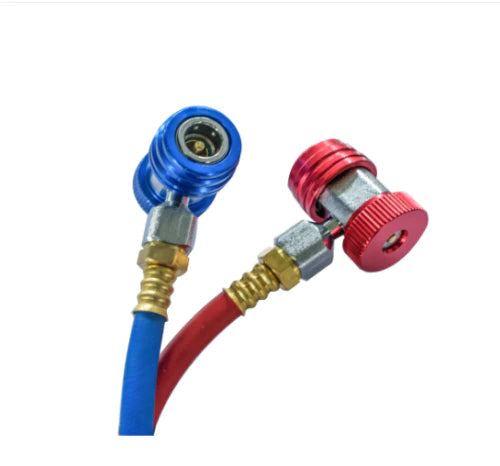

Hose Length: 9.8 ft (3 m) SAE J2788
-
Compressor: 1/3 hp (246W), thermally protected, oiled, hermetically sealed
-
Vacuum Pump: 3.6 CFM (120 L/min), dual-stage
-
Display: 7" Touch HQ
-
Tank Capacity: 0.5 cubic feet (14.3 L)
-

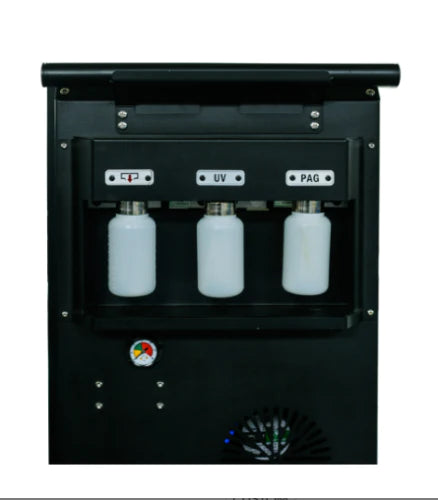

Oil Bottle Capacity: 15 cubic inches (250 mL)
-
Additional Features: Built-in printer (optional), heating belt (optional), SD database support, vacuum test, fan & condenser system
-
Packing Size: 22" x 28" x 41" (550 x 700 x 1050 mm)
-
Gross Weight: 240 lbs (110 kg)
