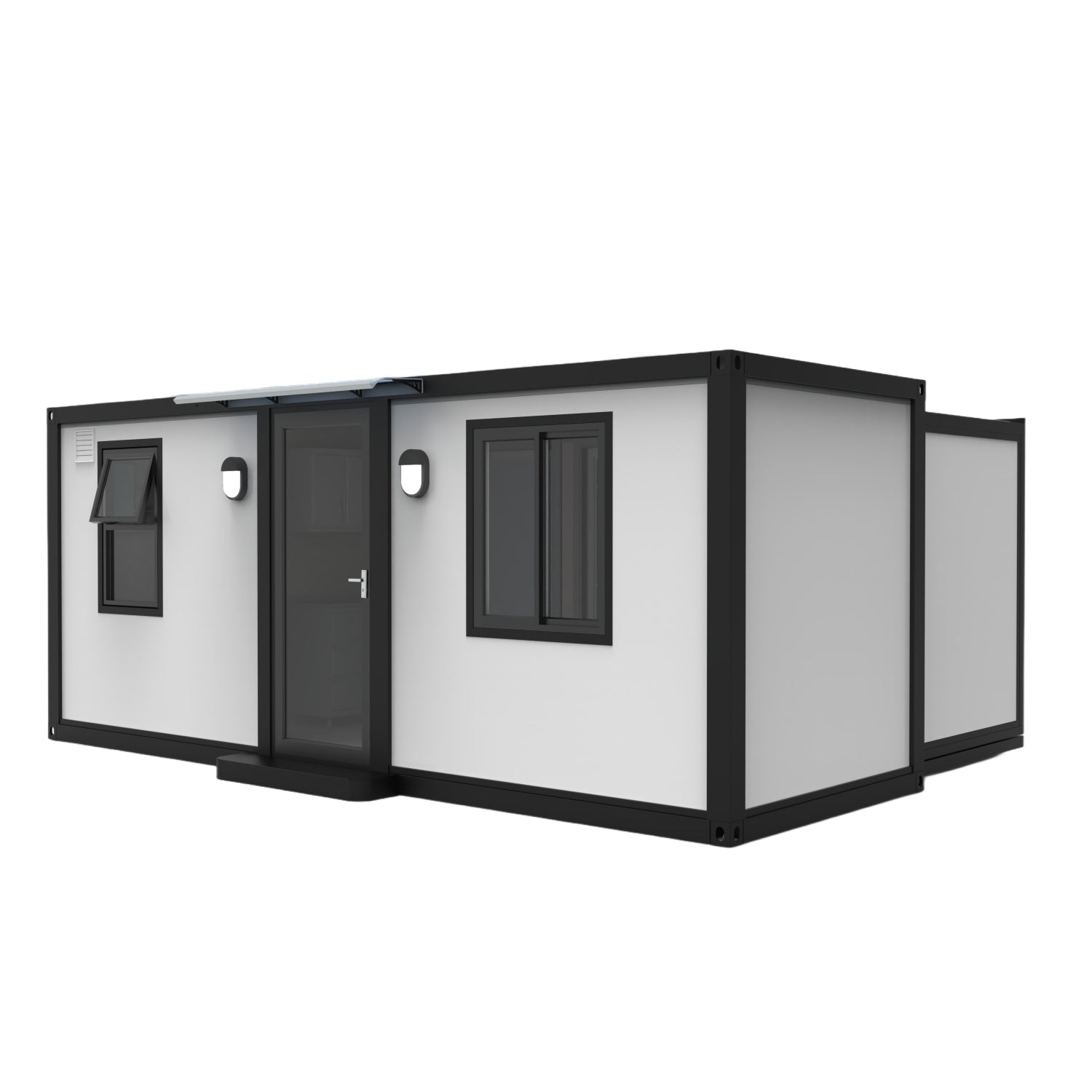

Chery Industrial 7ft x 20ft Expandable Mobile Studio Unit with 2 Bedroom

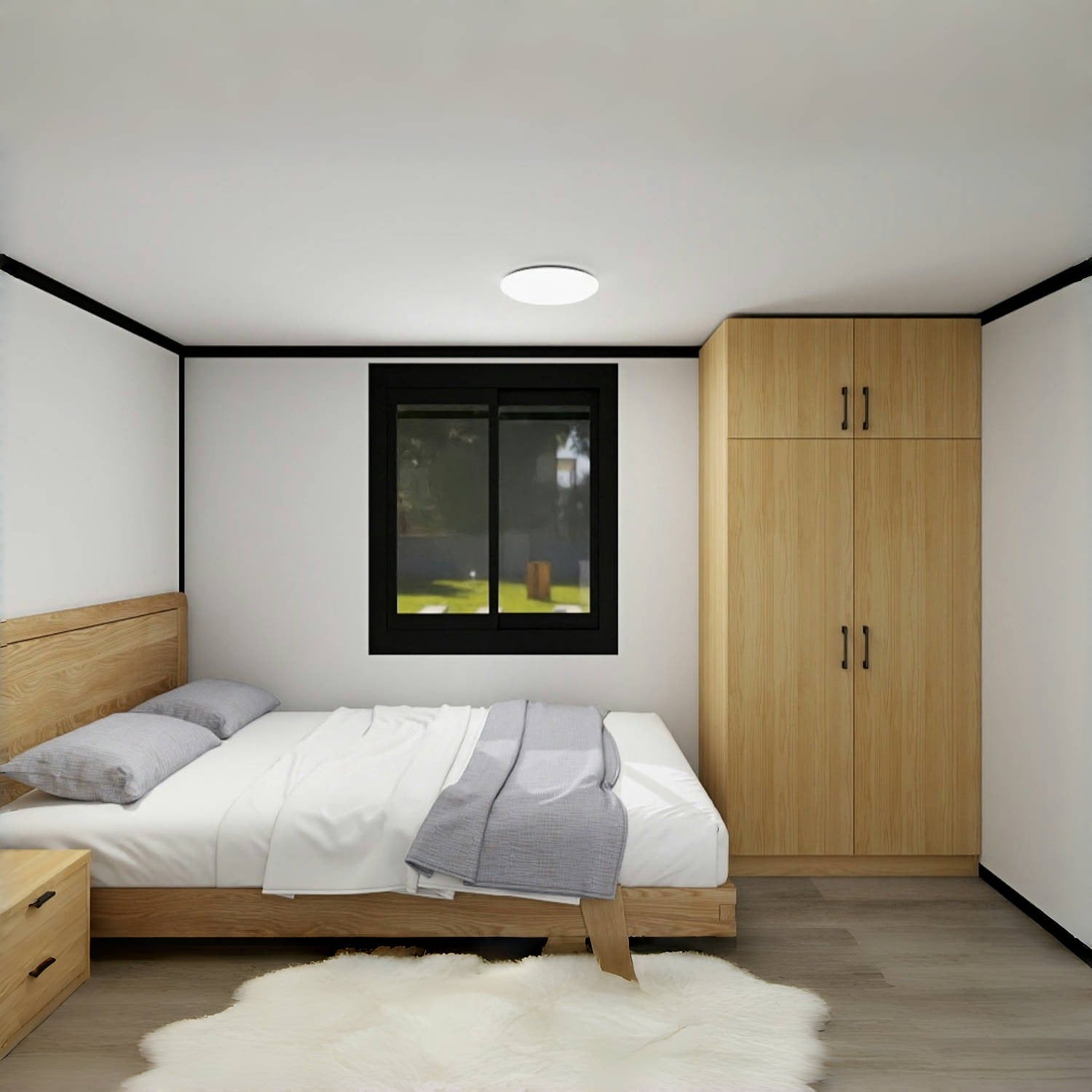

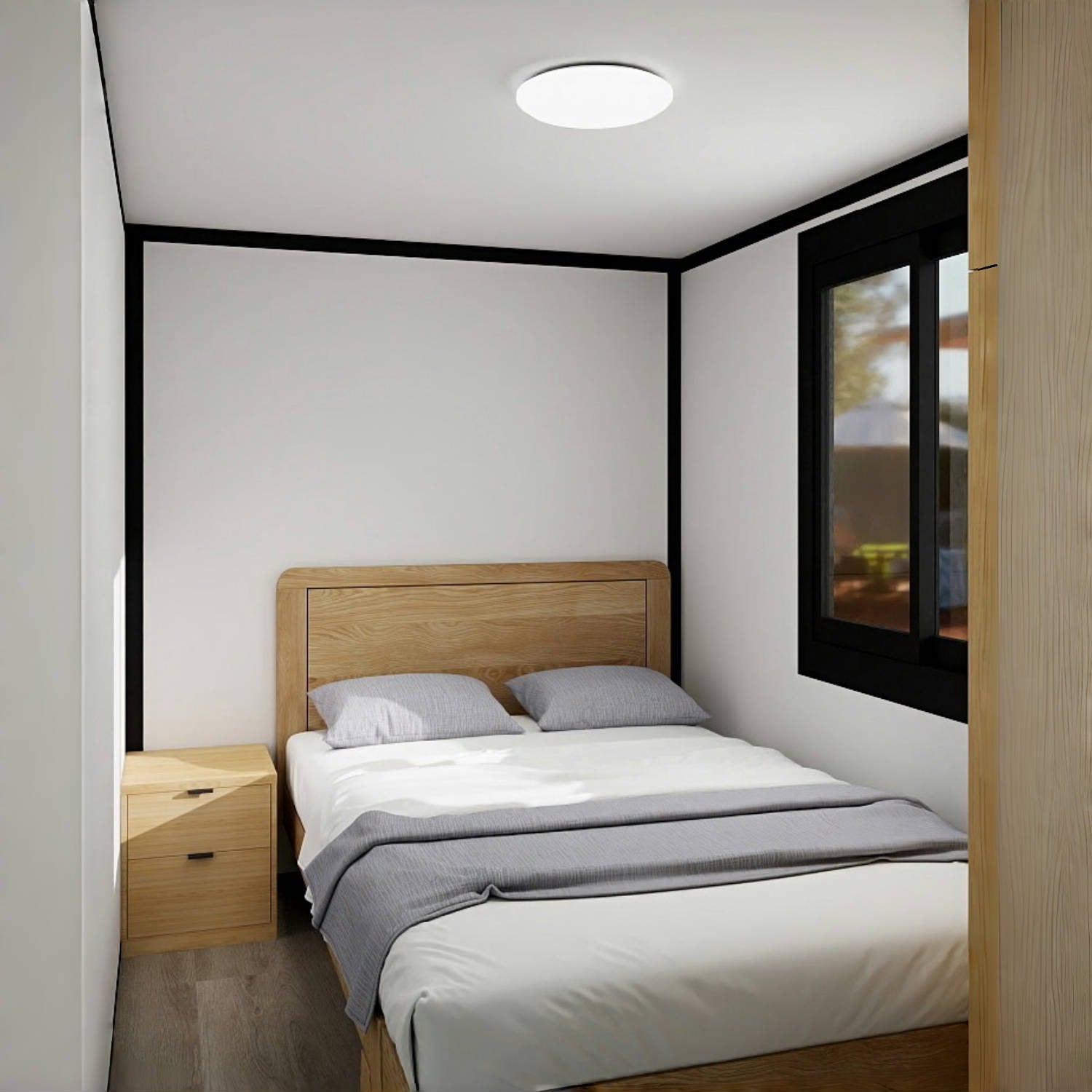

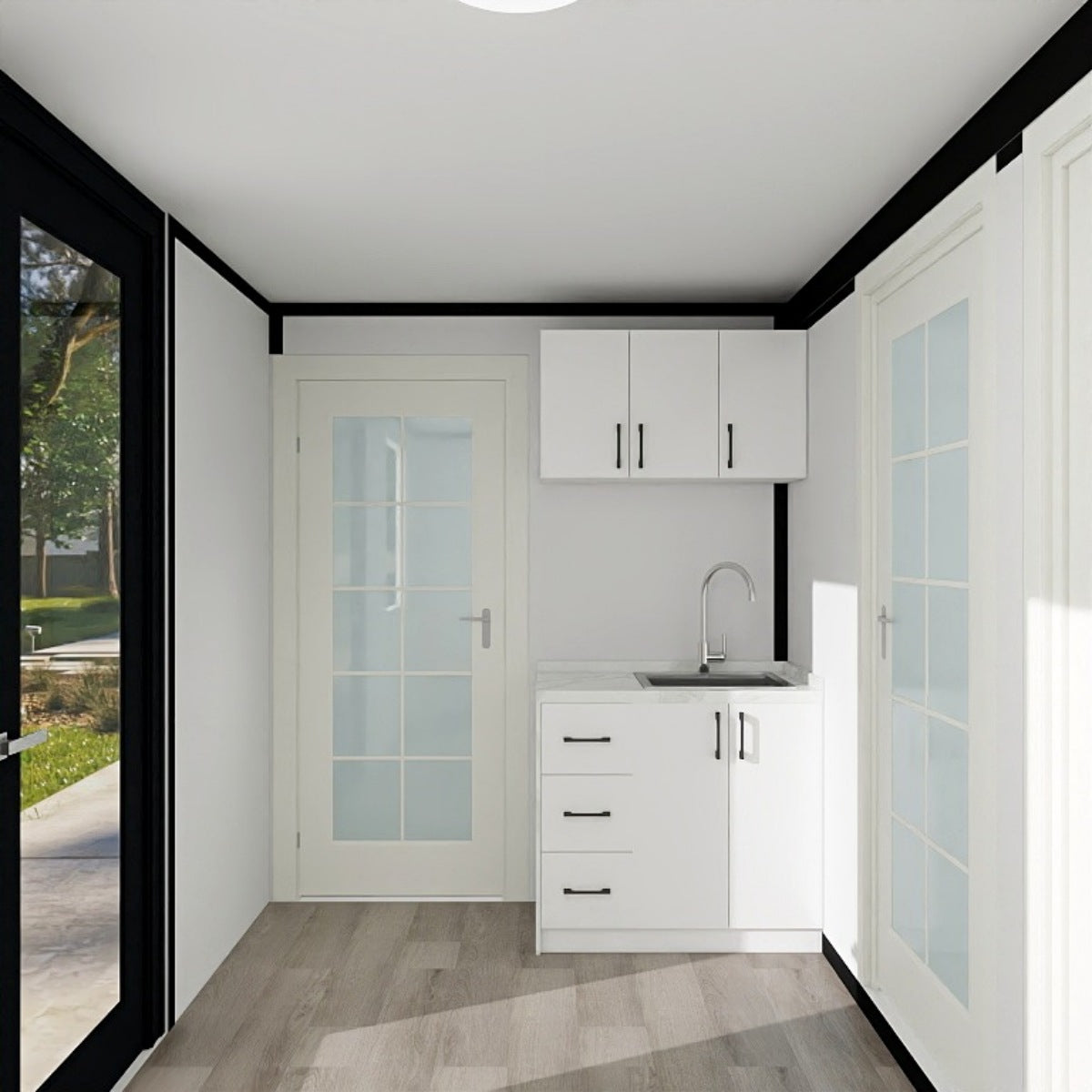

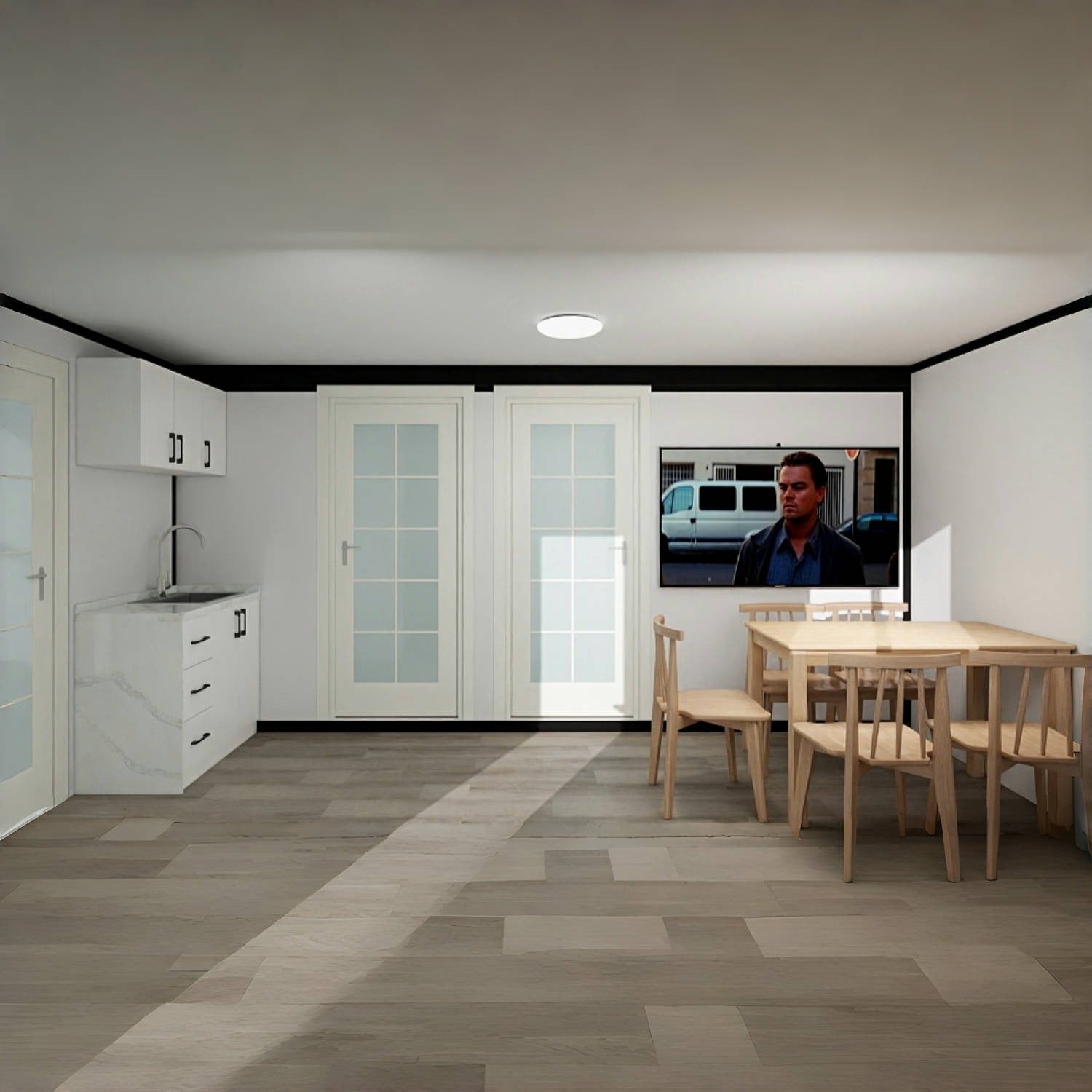

Starts compact at L20āxW7ā, expanding to L20āxW13ā to provide ample living space. Includes two separate bedrooms, a full bathroom with shower, a well-organized kitchenette with cabinetry, and a comfortable small living area. This expandable layout delivers maximum convenience and comfort within a mobile footprint, perfect for travel or flexible living.
Q235 Steel Frame
Robust structural steel construction with seismic resistance, ensuring long-lasting stability and durability.
2.8" EPS Composite Wall & Roof Panels
Built-in insulation system with R15 thermal resistance for consistent energy efficiency and adaptable climate control throughout the year.
B2 Fire Rating
Flame-retardant materials designed to meet safety standards, providing enhanced protection for occupants.
Specifications

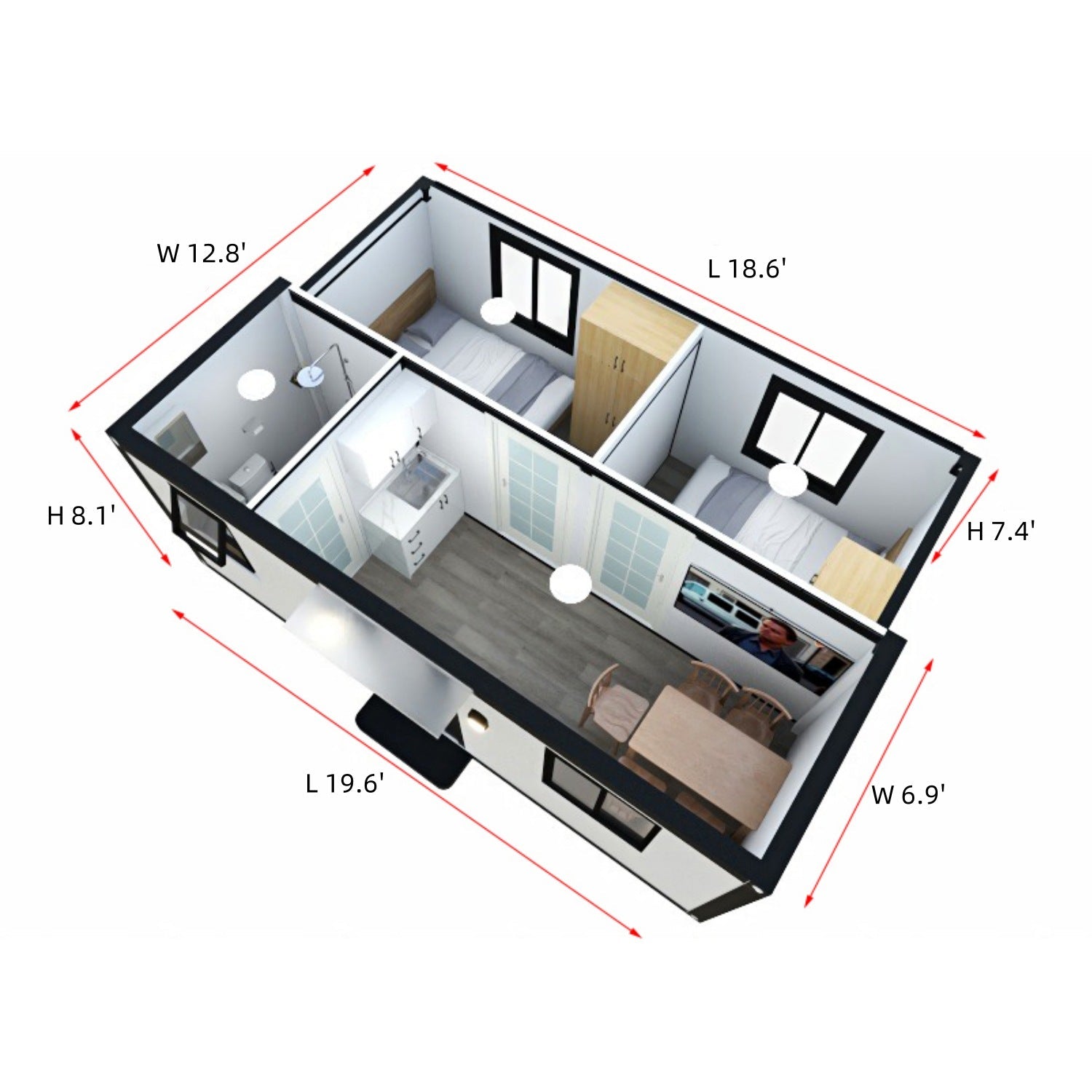

Base Dimension (LxWxH)
|
19.6'x6.9'x8.1'
|
Dimension (LxWxH)
|
19.6'x12.8'x8.1' (After expansion)
|
Frame
|
Q235 Steel
|
Wall Panel
|
2.8" EPS Composite Panel
|
Roof Material
|
2.8" EPS Composite Panel
|
Floor
|
20mm fireproof board + 2mm anti-slip and wear-resistant floor leather
|
Door
|
Thermally Broken Aluminum Single Door
|
Inlet Pipe
|
½ā Pipe
|
Drain Pipe-Gray Water
|
2" Pipe
|
Drain Pipe-Black Water
|
3.54"
|
Fire-proof Level
|
B2
|
Furniture
|
Combined cabinet (with single sink) / wall cabinet / wooden bed / bedside table / hanging wardrobe / dining table
|
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
Due to the extra-large size, the product will be shipped via flatbed trucks, and it is the customer's responsibility to unload the product from the trucks. Please have forklifts or a crane ready to unload. Please make sure the forklift has enough capacity to unload and balance the product when unloading. A crane is recommended.
