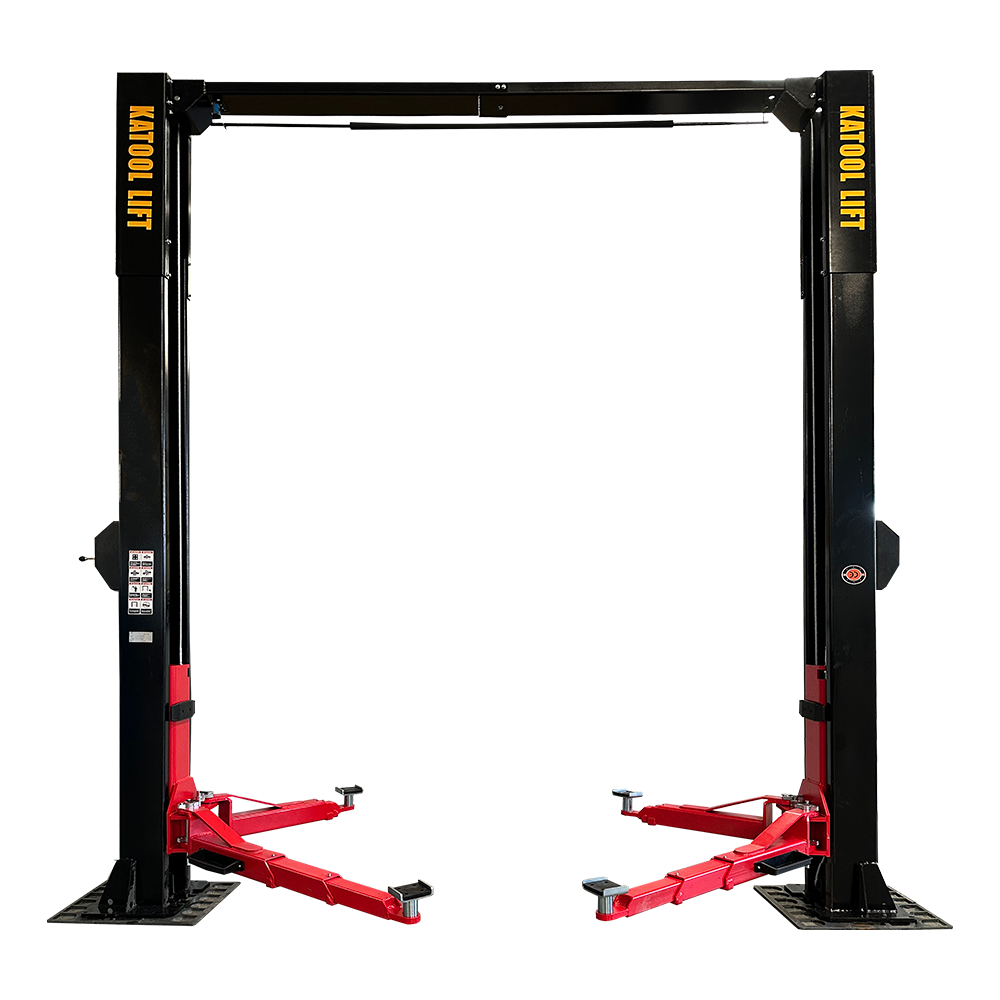

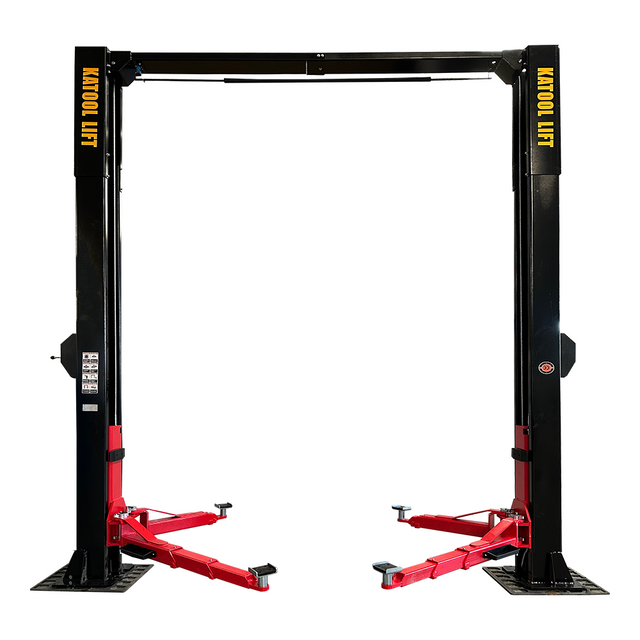

Katool 15000lbs Symmetric Two Post Lift KT-M150D

Katool 15000lbs Symmetric Two Post Lift KT-M150D

The Katool KT-AM120SD is a heavy-duty two-post vehicle lift designed for professional automotive shops that require dependable lifting performance and wide vehicle compatibility. With a 12,000 lb lifting capacity, it supports sedans, SUVs, vans, and light trucks, making it suitable for general maintenance, suspension work, brake service, undercarriage repairs, and daily shop operations.

Built with a clear-floor structure, the lift provides full underbody access and allows technicians to work efficiently without base obstructions. Its symmetrical lifting arms and dual hydraulic chain-drive cylinders ensure smooth, stable, and balanced lifting. The single-point lock release with synchronized bilateral unlocking allows the operator to control the entire locking system from one position, improving workflow speed and ease of use.

The lift offers a maximum lifting height of approximately 70.87 inches (1800 mm) and a minimum pad height of around 4.25 inches (110 mm), enabling service on both low-clearance vehicles and taller models. With 12 mechanical locking positions, a durable 4.0 HP motor (220V single-phase), and included hardware such as anchor bolts and hydraulic components, the KT-AM120SD delivers strong, reliable performance for demanding shop environments.

Engineered for durability, efficiency, and operator convenience, the Katool KT-AM120SD is an excellent choice for workshops seeking a versatile and professional-grade lifting solution.

Features

• Heavy-duty capacity ideal for trucks and commercial vehicles

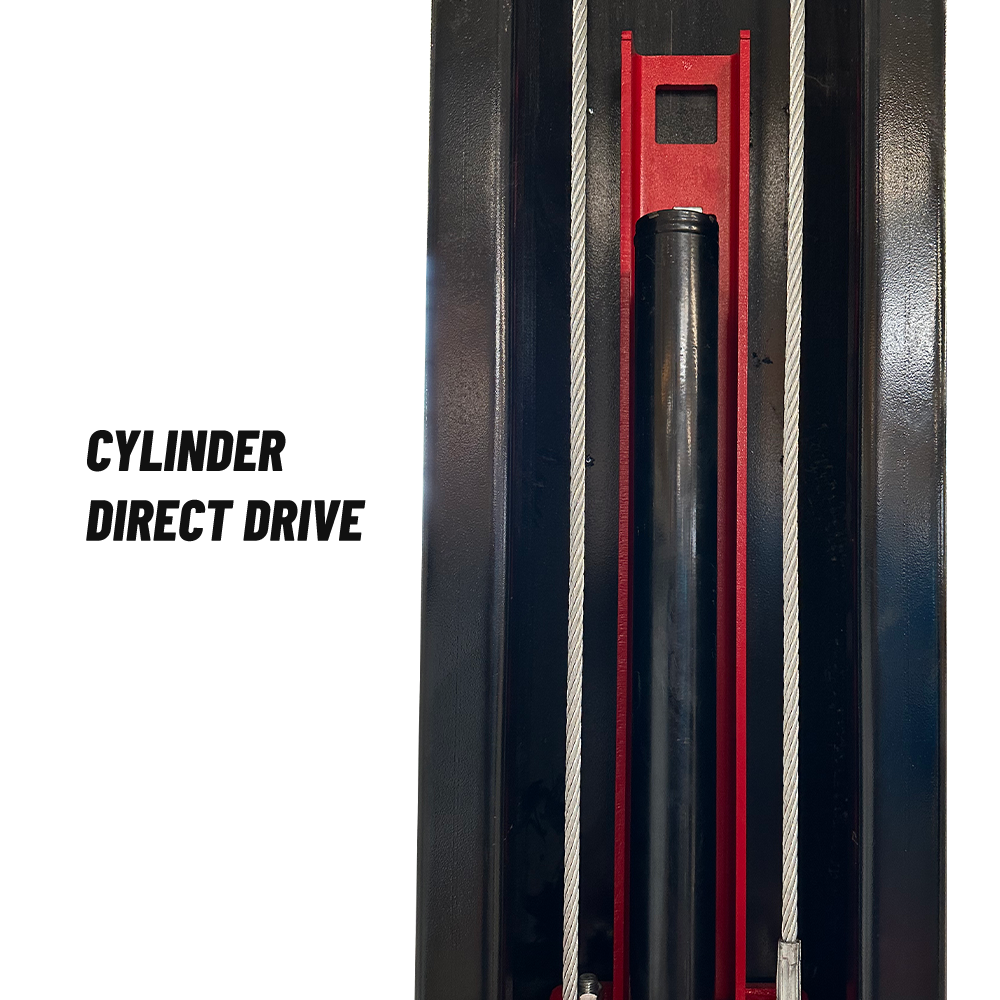

• Direct-drive system for smoother lifting and lower maintenance

• Symmetric post design provides stable, balanced lifting

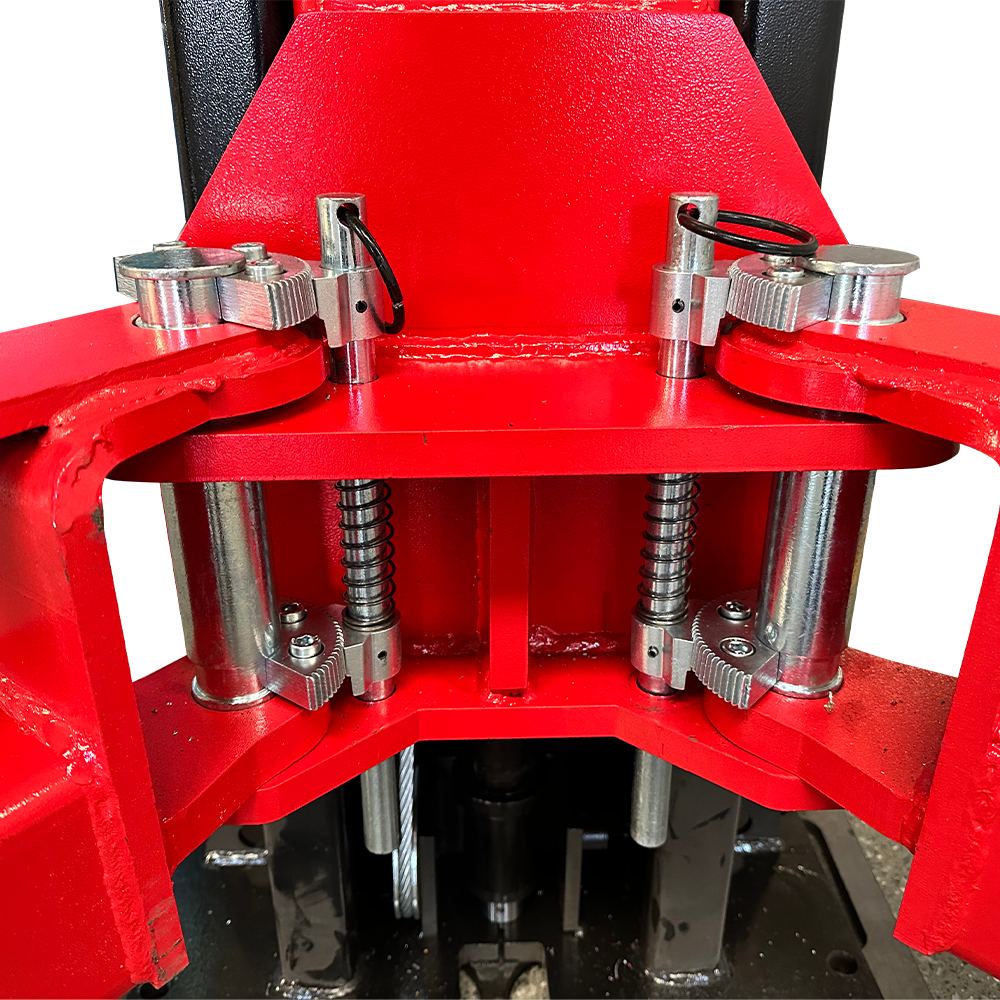

• Single-point lock release for quick, secure operation

• Industrial-grade construction for shop or professional use

• Meets strict safety requirements for concrete strength and thickness

*Concrete thickness must be at least 6” with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

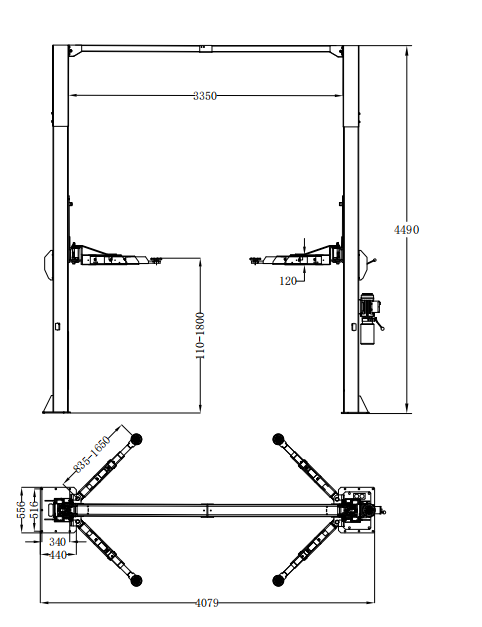

Specifications

• Lifting Capacity: 15,000 lbs
• Max Lifting Height: 72.83″

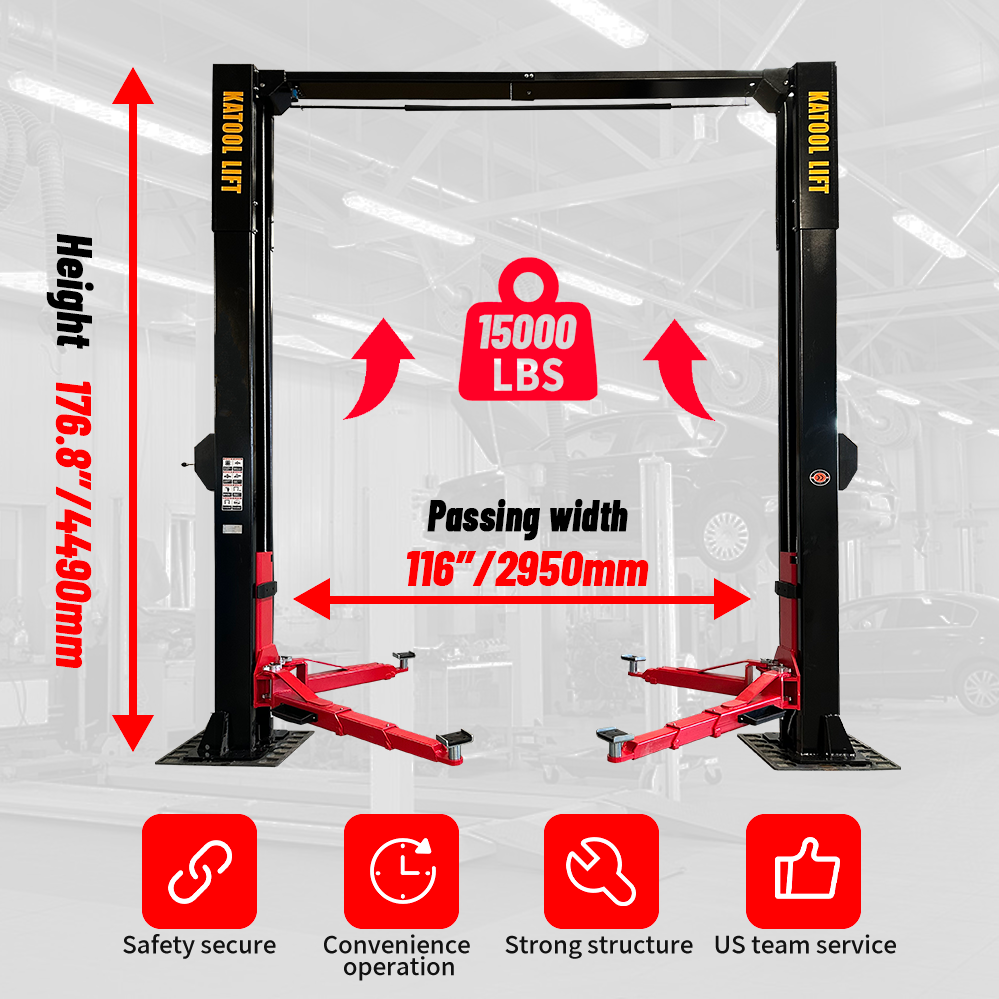

• Height 176.8″
• Drive Thru Clearance: 116″
• Motor: 4HP / 3KW
• Voltage: 220V / 60Hz
• Concrete Requirement: Minimum 5.9″ thickness, 3000 PSI strength

Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.

2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.

3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.

• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.

• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
