Kingsman ZCVRB60 60" Propane Gas Direct Vent Linear Fireplace ZCVRB60LPE

Kingsman ZCVRB60 60" Propane Gas Direct Vent Linear Fireplace ZCVRB60LPE

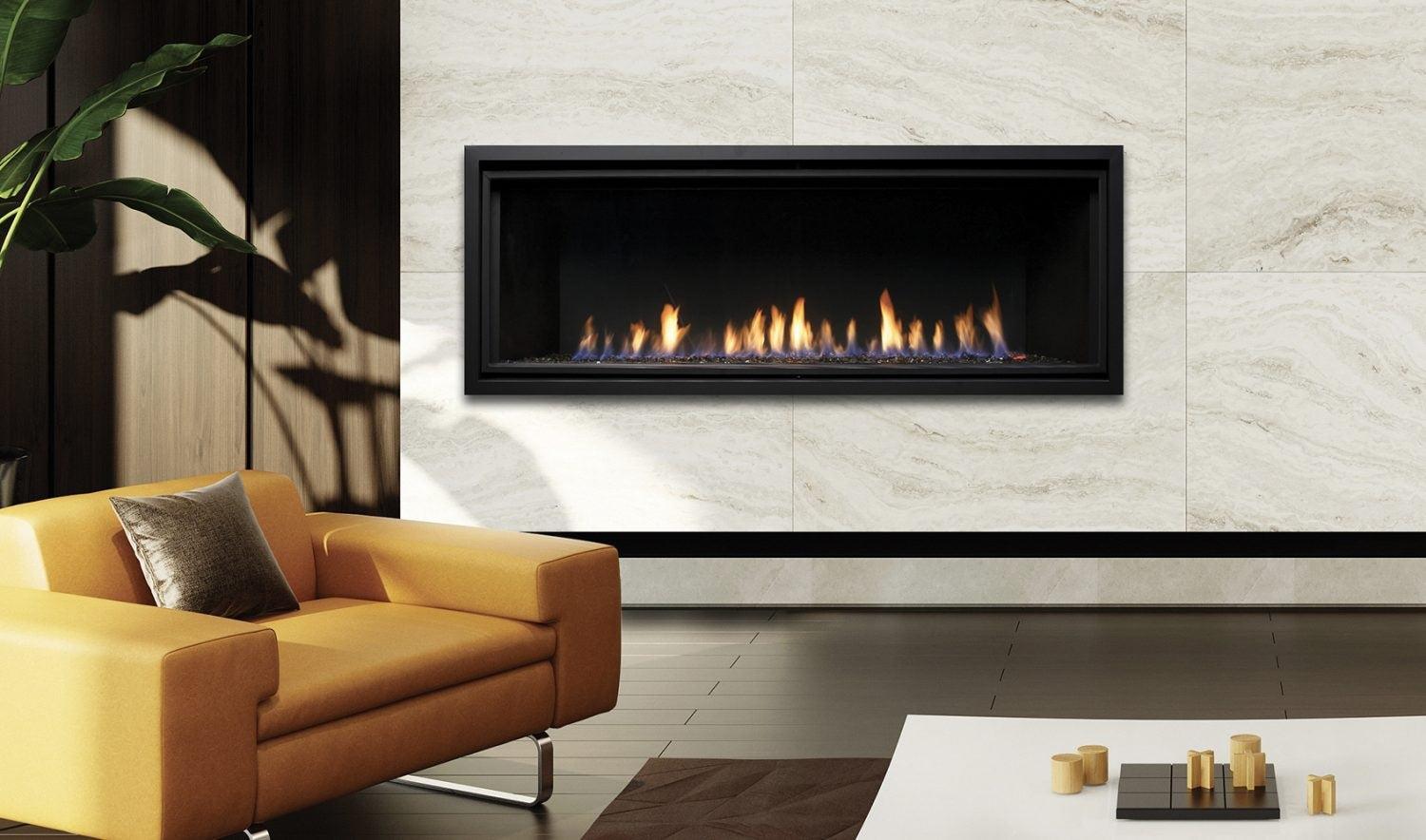

The Kingsman ZCVRB60 60" Propane Gas Direct Vent Linear Fireplace is designed for new home construction or renovation projects, providing a modern linear fireplace solution with efficient direct vent performance. Featuring a sleek linear style, tempered glass, safety barrier screen, and decorative bronze glass media, this fireplace adds contemporary elegance and warmth to any living space.

The Intermittent Pilot (IPI) valve system provides reliable ignition and allows the fireplace to operate during power failures. The direct vent design uses a sealed combustion system, helping maintain indoor air quality while delivering a beautiful flame presentation and dependable heating performance.

Approved for mobile homes, bedrooms, and bed-sitting rooms, the ZCVRB60 offers flexible installation options throughout the home. Optional accessories such as ventilation grills, surround trim kits, porcelain reflective liners, decorative cannonballs, fan kits, and remote controls allow additional customization.

Features

• Tempered Glass
• Safety Screen Barrier
• Decorative Bronze Glass
• Mobile Home, Bedroom and Bed Sitting Room approved
• Hi/Low Millivolt or IPI valve system will operate during power failures
• Linear burner design
• Direct vent sealed combustion system
• Intermittent Pilot control system
• Compatible with optional remote controls and thermostats

Specifications

 Dimension

What's Included

• ZCVRB60 Linear Fireplace
• SIT Valve with Hi/Lo Adjustment
• Bronze Glass Media
• Tempered Glass
• Linear Burner
• Safety Screen
• 5/8" Top Flue

Not Included (Sold Separately)

• Grills for Ventilation
• Surround Trim Kit
• Porcelain Reflective Liner
• Decorative Cannonballs
• Fan Kit With Variable Speed
• Universal Light Kit
• Tile Lip Kit
• Gas Conversion Kit
• Thermostats and Remote Controls

View and Download

• Product Guide
• Product Brochure
• Product Manual

Vented Chase Option

The chase of the appliance may be vented to achieve Cool Touch Walls or reduced Mantel Clearances. The following options are available to vent the chase:

• The top of the chase can be left open.
• A grill can be installed on the front of the chase.
• If the chase bumps out into the room, side grills can be installed on each side of the chase.

Minimum enclosure height for a vented chase is measured from bottom of fireplace, ventilation of minimum free air opening is required. Choose between our Enclosure Grills (Front or Sides) or Custom Grill (if custom grills are used the louvers cannot slope) or adequate ventilation opening as stated in the manual. Grill or opening must meet minimum (as specified in the installation manual) of chase top/ceiling.

SPECIFICATIONS WITH OPENINGS (MIN. NO GRILLS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 200 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB72 – 79”

Min. Opening Below Ceiling
ZCVRB47 – 1-1/4”
ZCVRB60 – 1-7/8”
ZCVRB72 – 2-3/8”

SPECIFICATIONS WITH GRILLS (MIN. AIR FREE OPENINGS)

ZCVRB47 – 105 sq/in.
ZCVRB60 – 220 sq/in.
ZCVRB72 – 285 sq/in.

Min. Enclosure Height
ZCVRB47 – 70”
ZCVRB60 – 76”
ZCVRB60 – 79”

Grill Opening (Max. Distance from top of Ceiling)
ZCVRB47 – 2”
ZCVRB60 – 3/4”
ZCVRB60 – 3/4”
