MRCOOL  |  SKU: DIY-24-HP-MUAH-230D25-O-1
33% off
New arrival

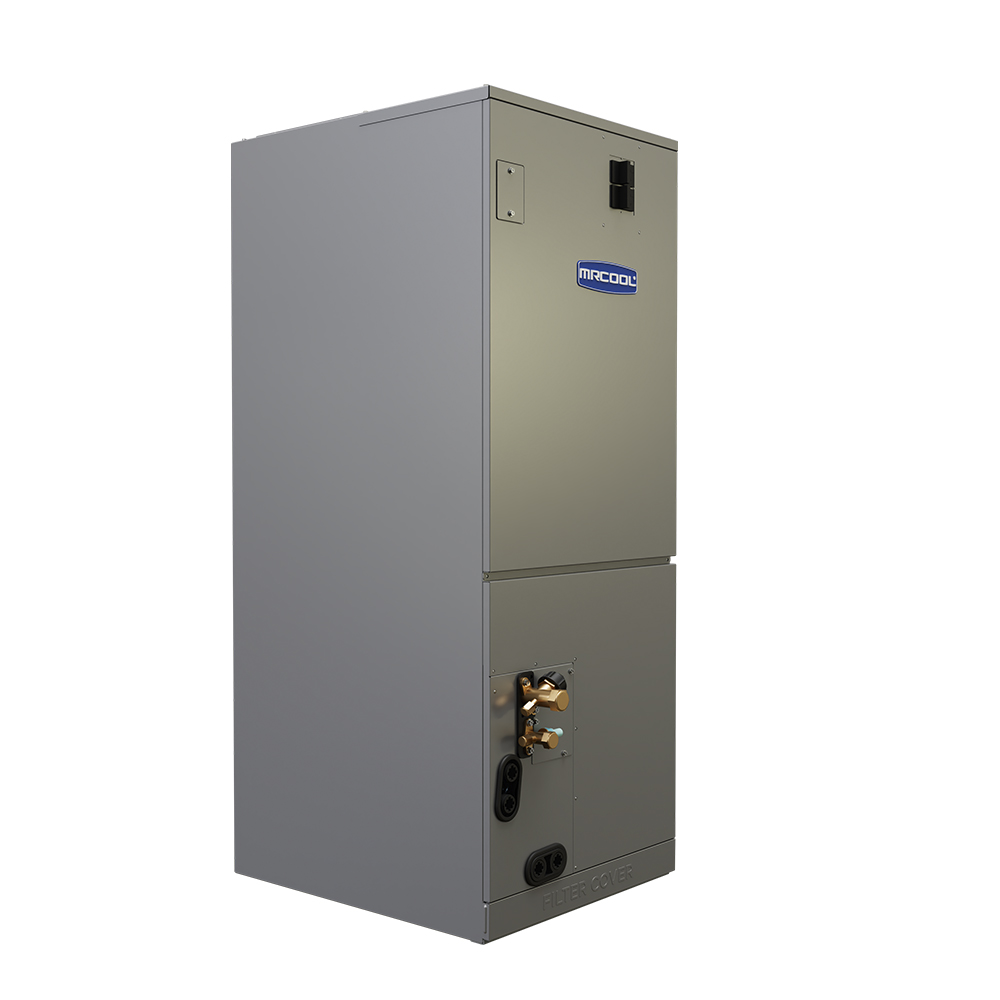

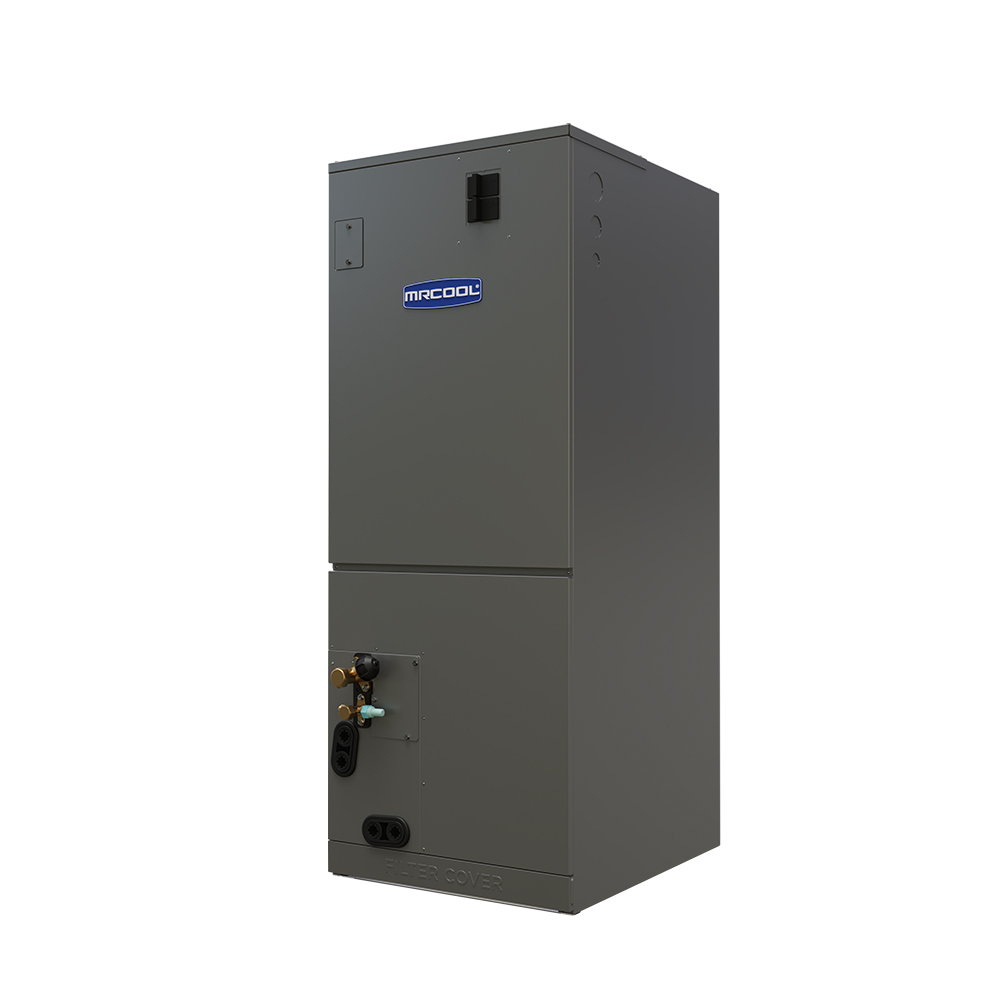

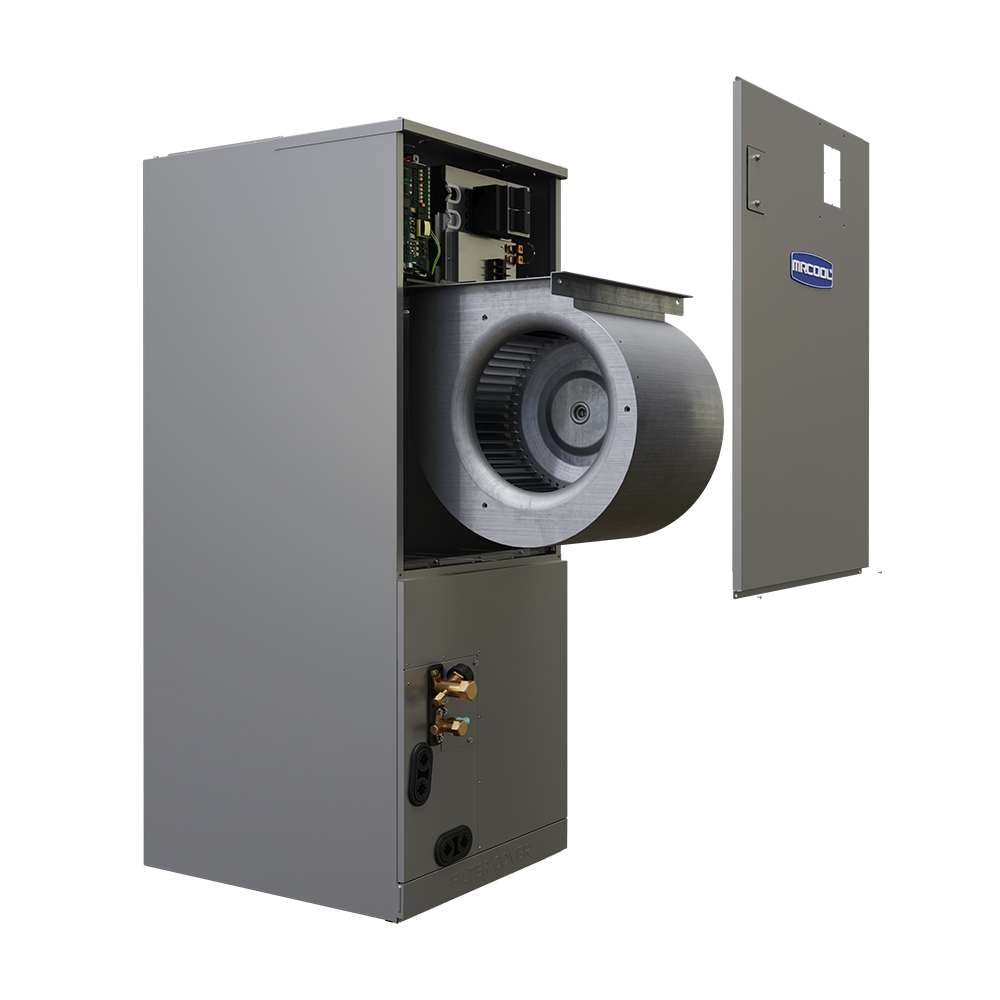

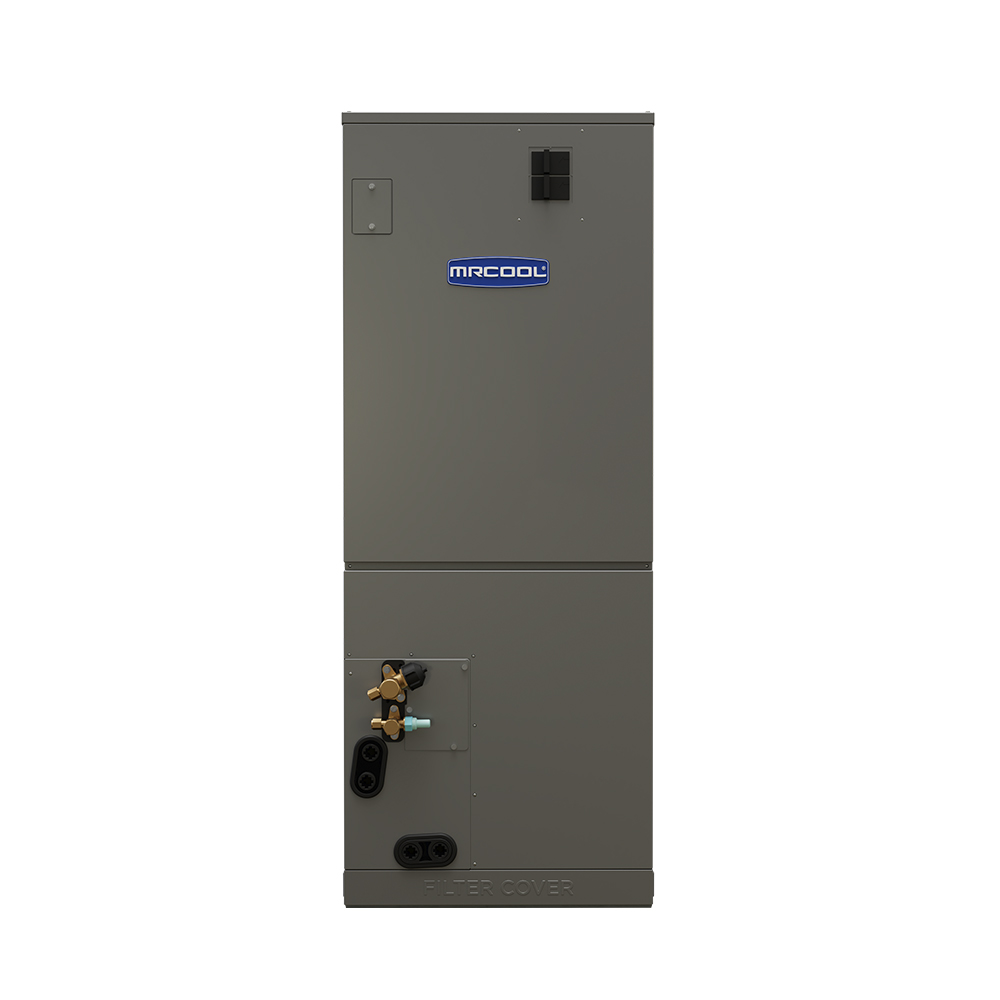

MRCOOL DIY Hybrid™ 24K Ducted Air Handler – Multi Zone Ready, DIY Install

$1,000.00 USD $1,499.59

Delivery and Shipping

We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy

Price Match Guarantee

Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)

Returns

Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy

Shop with Confidence
As an authorized U.S. dealer, every order is verified and backed by full manufacturer warranty. Contact our team if you need an official quote, invoice, or product guidance before ordering

Genuine Products — Manufacturer Warranty Included
All items sold at The Imperial Luxe are 100% authentic and backed by the manufacturer’s warranty.

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)

Description

MRCOOL DIY Hybrid™ 24K Ducted Air Handler – Multi Zone Ready, DIY Install

Experience whole‑home comfort like never before with the MRCOOL DIY Hybrid™ 24K Ducted Air Handler—a powerful, efficient, and truly DIY‑friendly central heating and cooling solution designed for spaces up to approximately 1,050 sq. ft. This versatile air handler brings modern HVAC performance to homeowners who want professional‑level comfort without the complexity or expense of traditional installations. Built to pair seamlessly with MRCOOL DIY outdoor condensers and other indoor units, it allows you to create a fully customized HVAC system that adapts to your living space and comfort needs.

Crafted with durability and flexibility in mind, the unit features a rugged painted galvanized steel cabinet and supports multiple installation orientations—upflow, downflow, or horizontal left/right—making it suitable for attics, basements, crawlspaces, closets, or utility rooms. The use of next‑generation R‑454B refrigerant delivers high performance with reduced environmental impact, while the built‑in self‑diagnostic panel simplifies service and maintenance.

Control your indoor climate with ease using the included MRCOOL Smart Wi‑Fi Thermostat, offering intuitive touchscreen and mobile app control (iOS and Android) that puts comfort at your fingertips whether you’re home or away. Optional auxiliary heat kits provide supplemental warmth when temperatures drop, ensuring year‑round comfort even in cold climates.

Backed by a 5‑year parts warranty and designed for straightforward installation without specialist HVAC tools or certification, the MRCOOL DIY Hybrid™ Air Handler represents a smart upgrade for whole‑home comfort. It’s an ideal solution for replacing outdated systems, enhancing new builds, or expanding comfort zones with additional indoor units—all powered by a single outdoor condenser.

Features

  • Central ducted HVAC comfort through existing or new ductwork.

  • DIY‑ready integration with MRCOOL outdoor condensers via control wiring.

  • Includes MRCOOL Smart Wi‑Fi Thermostat for touchscreen and app control.

  • Flexible installation: upflow, downflow, horizontal left/right.

  • Self‑diagnostics panel to streamline troubleshooting.

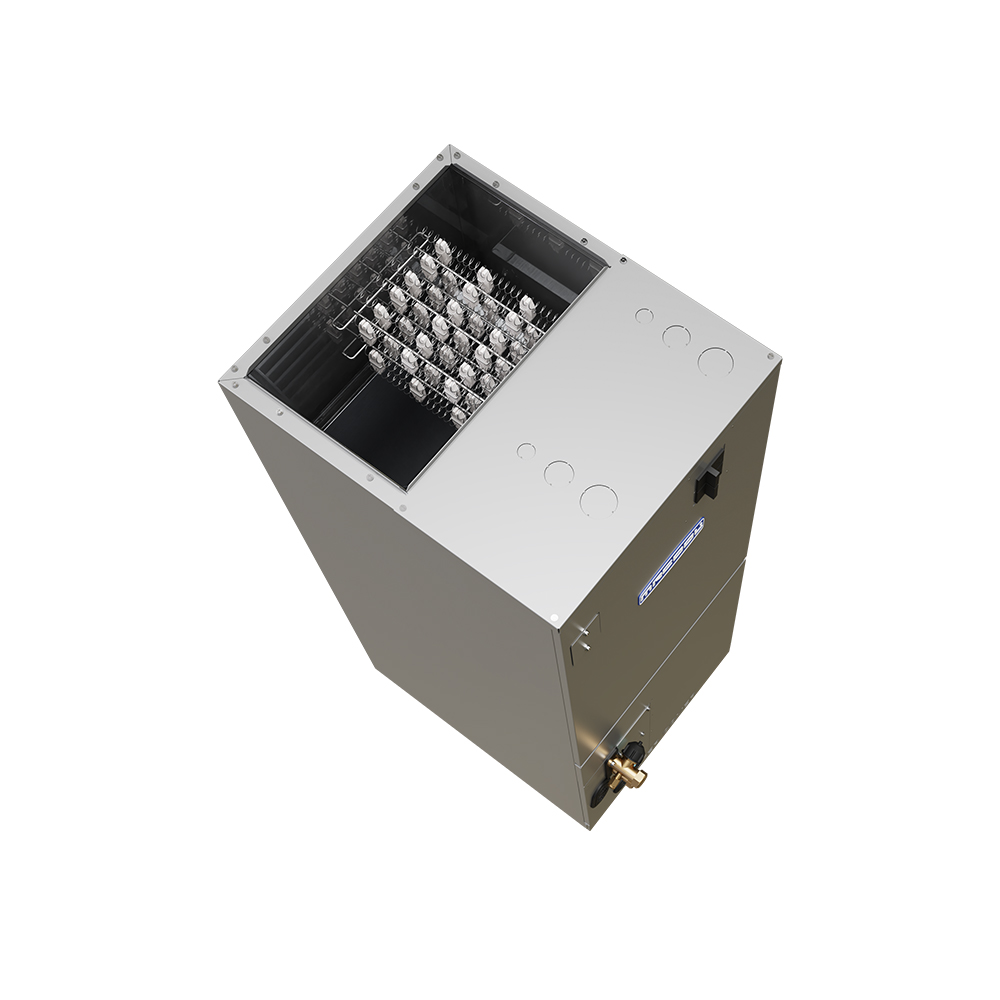

  • Supports optional emergency heat strips (auxiliary heat kits).

  • Eco‑friendly R‑454B refrigerant.

  • Rugged painted galvanized steel cabinet for durability.

  • Covered by 5‑year parts warranty.

Specifications

Specification Details
Model DIY‑24‑HP‑MUAH‑230D25‑O
Series DIY Hybrid™ Air Handler
Unit Type Split System Ducted Air Handler
Works With DIY MZ or 24K DIY Condenser
Cooling / Heating Capacity 24,000 BTU
Max Coverage Area ~1,050 sq. ft.
Refrigerant Type R‑454B
Voltage / Phase 208/230V, Single Phase
CFM (Airflow) 824 / 759 / 694 / 630
Noise Level (dBA) Low: 29 / Med: 42.5 / High: 44
Number of Fan Speeds 4
Drain Connection 3/4″
Liquid Line Size 3/8″
Suction Line Size 5/8″
Max Line Set Length 75 ft

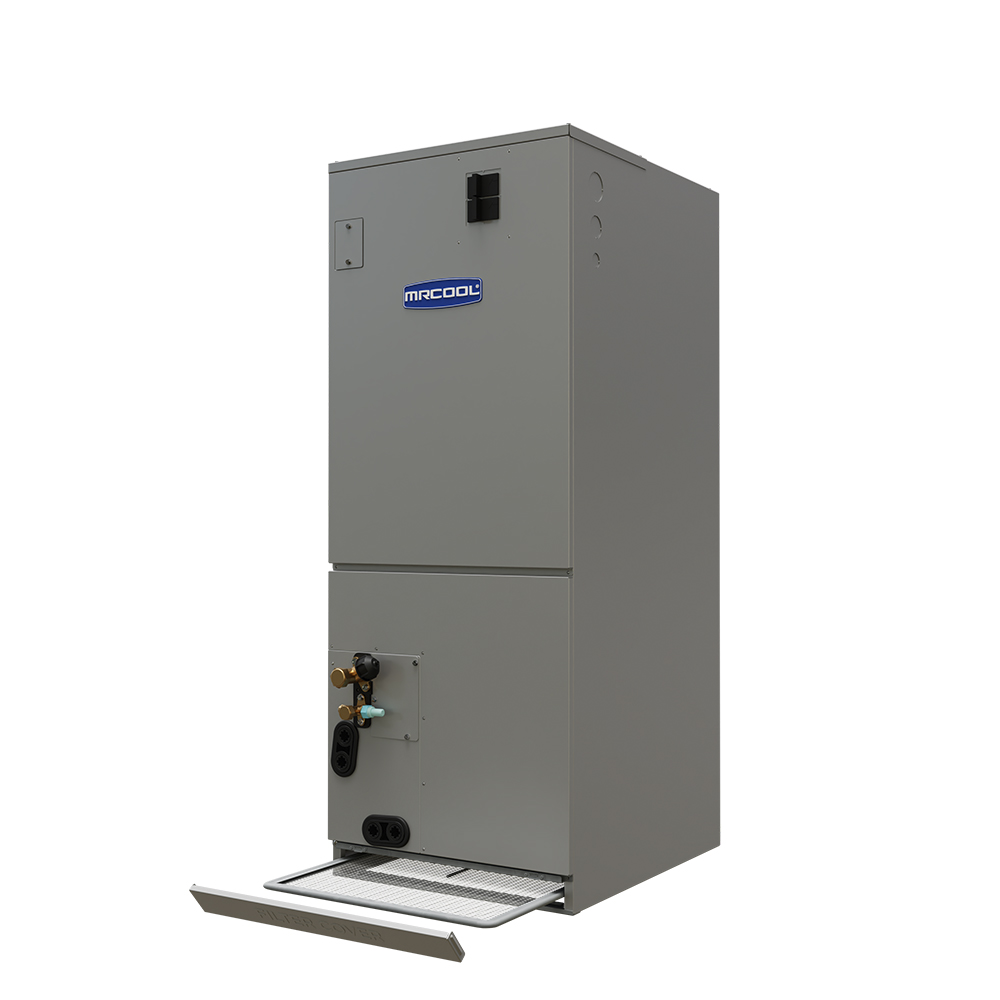

Filter Type Replaceable
Auxiliary Heater Available 5kW, 8kW, 10kW, 15kW
Wi‑Fi & App Compatible Yes (iOS & Android)
Smart Thermostat Included MRCOOL Smart Wi‑Fi Thermostat
Warranty 5‑Year Parts / Extended Limited Lifetime*
Certifications UL, CSA, ETL, ENERGY STAR, AHRI
Net Dimensions (H×W×D) 45 × 17.52 × 21.02 in
Gross Dimensions 48.62 × 20.87 × 26.57 in
Net Weight 104.72 lb
Gross Weight 126.76 lb

 Works with (Sold Separately)

DIY-MULTI4-27HP230D-O  MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v

DIY-MULTI5-36HP230D-O  MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v

DIY-MULTI5-36HP230D-O  MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v

DIY-MULTI6-48HP230D-O  MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v

DIY-MULTI6-55HP230D-O  MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v

DIY-24-HP-C-230D25-O    MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v

What Heat Kits fit (Sold Separately)

MVPHK05 5kW. VersaPro, Hyper Heat 2nd Gen 454B  and DIY Hybrid Air Handler Heat Kit

MVPHK08  VersaPro, Hyper Heat 2nd Gen 454B  and DIY Hybrid Air Handler Heat Kit

MVPHK10  VersaPro, Hyper Heat 2nd Gen 454B  and DIY Hybrid Air Handler Heat Kit

MVPHK15  VersaPro, Hyper Heat 2nd Gen 454B  and DIY Hybrid Air Handler Heat Kit

What’s Included

  • MRCOOL® DIY Hybrid™ Ducted Air Handler (selected size)
  • Built-in self-diagnostic display panel
  • MRCOOL® Smart Wi-Fi Thermostat
  • Owner’s/Installation documentation

Popular Add-Ons & Accessories

  • Emergency Heat Kit (heat strips) for auxiliary heating
  • Additional MRCOOL® indoor air handlers (wall or ceiling) for multi-zone expansion
  • MRCOOL® DIY outdoor condenser (sized to total indoor BTUs)
  • Ducting, plenums, returns, filters, supply registers (as needed)

Frequently Asked Questions

Can I use this air handler with a MRCOOL® DIY condenser?

Yes. The MRCOOL® DIY Hybrid™ Ducted Air Handler is engineered to pair directly with compatible MRCOOL® DIY outdoor heat pump condensers through simple control wiring—no HVAC license, vacuum pump, or refrigerant charging required. This plug-and-play communication makes installation truly DIY while maintaining high performance and warranty protection.

How do I size the outdoor condenser for this system?

Sizing works like a multi-zone mini split. Add the BTU value of this ducted unit (36,000 BTU) plus any additional indoor heads you plan to install.

Choose a MRCOOL® DIY condenser that meets or slightly exceeds that combined capacity.

Example:

  • 36k ducted air handler + two 9k wall units = 54k total capacity → choose a condenser that supports 54k BTU.

Proper sizing prevents low airflow, poor humidity control, compressor strain, and premature system failure.

What size spaces do the 24k and 36k Hybrid air handlers typically cover?

  • 24K (2-Ton) — ideal for up to ~1,050 sq. ft.
  • 36K (3-Ton) — ideal for up to ~1,550 sq. ft.

Coverage depends on:

  • Outdoor climate
  • Insulation quality
  • Number and size of windows
  • Ceiling height
  • Room layout and duct restrictions

Homes with poor insulation or extreme climates may require the larger option or an auxiliary heat kit.

Does the MRCOOL® Hybrid air handler support auxiliary or emergency heat?

Yes. You can install an optional electric heat kit (5kW–20kW) for auxiliary heating when temperatures drop below optimal heat pump performance.

The air handler automatically engages the heat strip when needed, providing reliable backup during freezing weather or winter storms.

Which refrigerant does this system use?

It uses R-454B, a next-generation refrigerant with a significantly reduced environmental impact compared to legacy R-410A.

R-454B provides higher performance, improved efficiency, and supports future refrigerant mandates—making it a smart long-term HVAC investment.

Can I install this air handler in multiple orientations?

Absolutely. The unit supports upflow, downflow, and horizontal (left or right) installation.

This allows you to place it in basements, closets, attics, mechanical rooms, or crawlspaces without major ductwork redesign.

Is Wi-Fi or smart control included?

Yes. The Hybrid system can be paired with the MRCOOL® Smart Wi-Fi Thermostat to adjust temperature, fan speed, and settings through a touchscreen or the MRCOOL app on iOS and Android.

You can control your home from anywhere—vacation homes, rentals, or your daily commute.

How far can I run the refrigerant line set?

This model supports a maximum line set length of up to 246 ft, giving you excellent flexibility for remodels, multi-story homes, and long mechanical runs without losing performance.

Is this unit AHRI certified?

Yes. The MRCOOL® DIY Hybrid™ series is AHRI certified, which verifies tested efficiency, real performance, and ensures eligibility for energy rebates in some regions.

Does installing it myself void the warranty?

No—MRCOOL® designed this product specifically for DIY installation, and it maintains warranty coverage when installed according to the manual.

Just avoid cutting, opening, or charging refrigerant lines. That is already factory-sealed and pre-charged through the MRCOOL QuickConnect® system.

Is this a good replacement for a traditional central HVAC system?

Yes. The Hybrid air handler is an excellent upgrade for outdated furnaces or air handlers:

  • Lower monthly energy bills
  • No gas lines or combustion
  • Quiet operation
  • Smart thermostat control
  • Multi-zone expansion possible

Unlike traditional systems, it offers heat pump efficiency, easy service diagnostics, and modern refrigerant technology.
