Nature's Generator MyGrid 10K with Transfer Switch for House Battery Backup

Nature's Generator MyGrid 10K with Transfer Switch for House Battery Backup

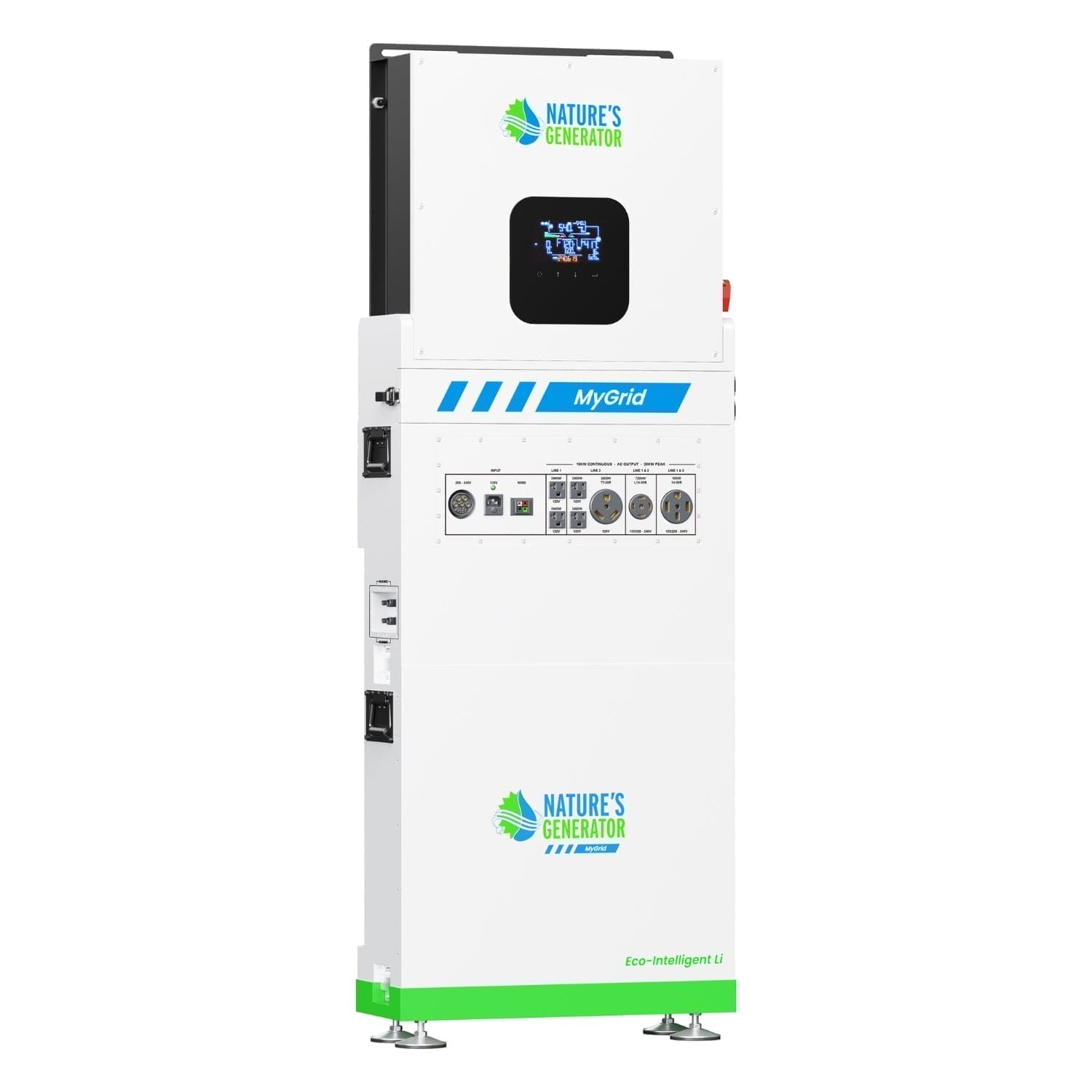

The Nature’s Generator MyGrid 10K House Battery Backup combines a powerful 10 kW inverter with a robust 10,496 Wh LiFePO₄ battery to deliver reliable, whole-home backup power. Designed for fast, plug-and-play installation, this system supports multiple charging sources — including solar, wind, and AC — so you can maintain energy independence even during extended outages. With its 120/240 V split-phase output, it’s capable of running high-demand home appliances while keeping sensitive devices safe.

Built for durability and long-term performance, the lithium iron phosphate battery is rated for over 6,000 cycles, giving you years of dependable service. The integrated automatic transfer switch ensures your circuits are seamlessly powered when grid electricity fails, and the system can be expanded later with additional batteries or renewable inputs to fit growing energy needs. A real-time LED display shows battery level, input/output wattage, and runtime, so you always know your system’s status.

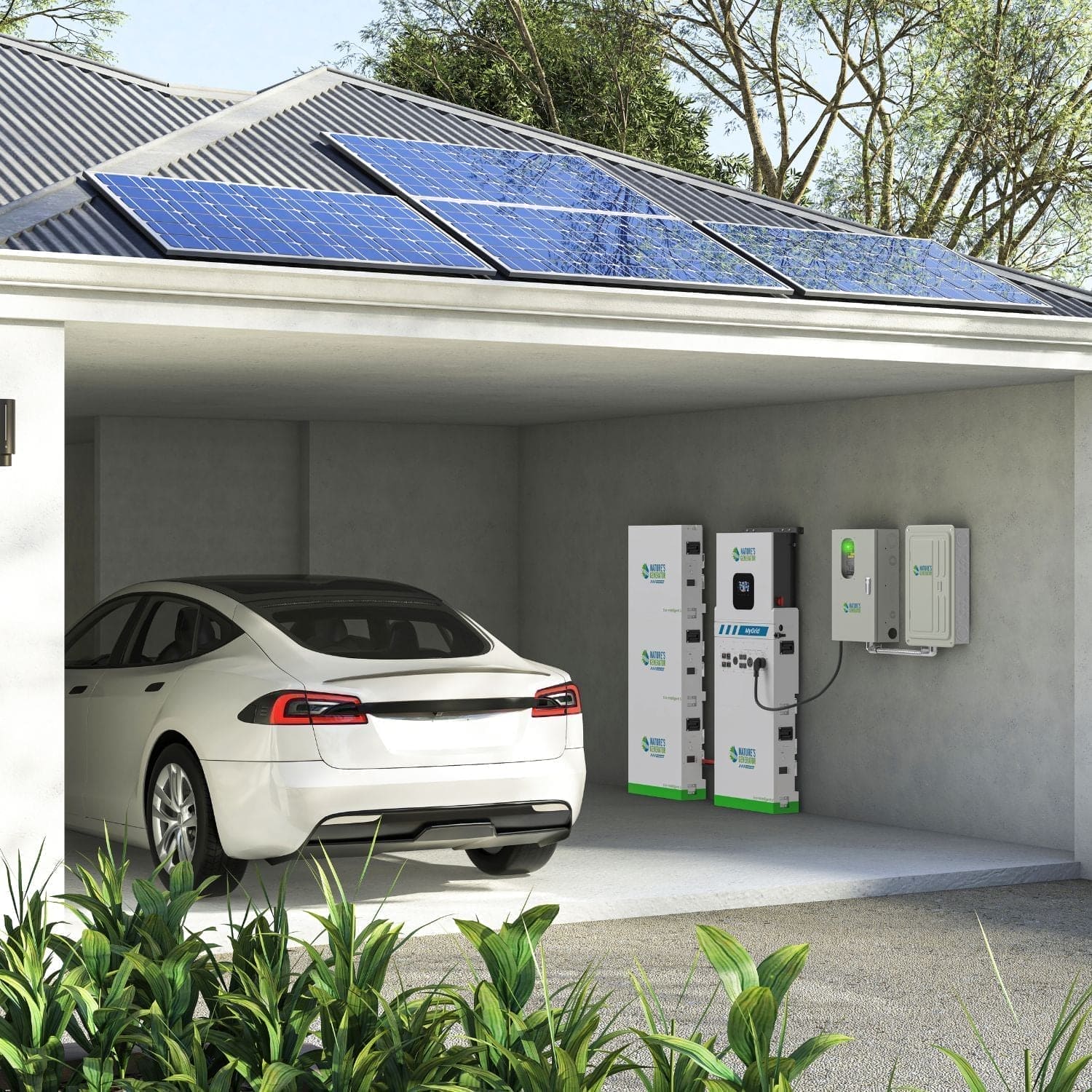

Nature’s Generator has also engineered this backup system to be space-efficient and flexible: its slim housing fits in tight homes, garages, or utility rooms, and it supports relocatable setups. Whether you're preparing for outages or reducing reliance on the grid, the MyGrid 10K offers a clean, powerful solution that scales to your lifestyle.

Features

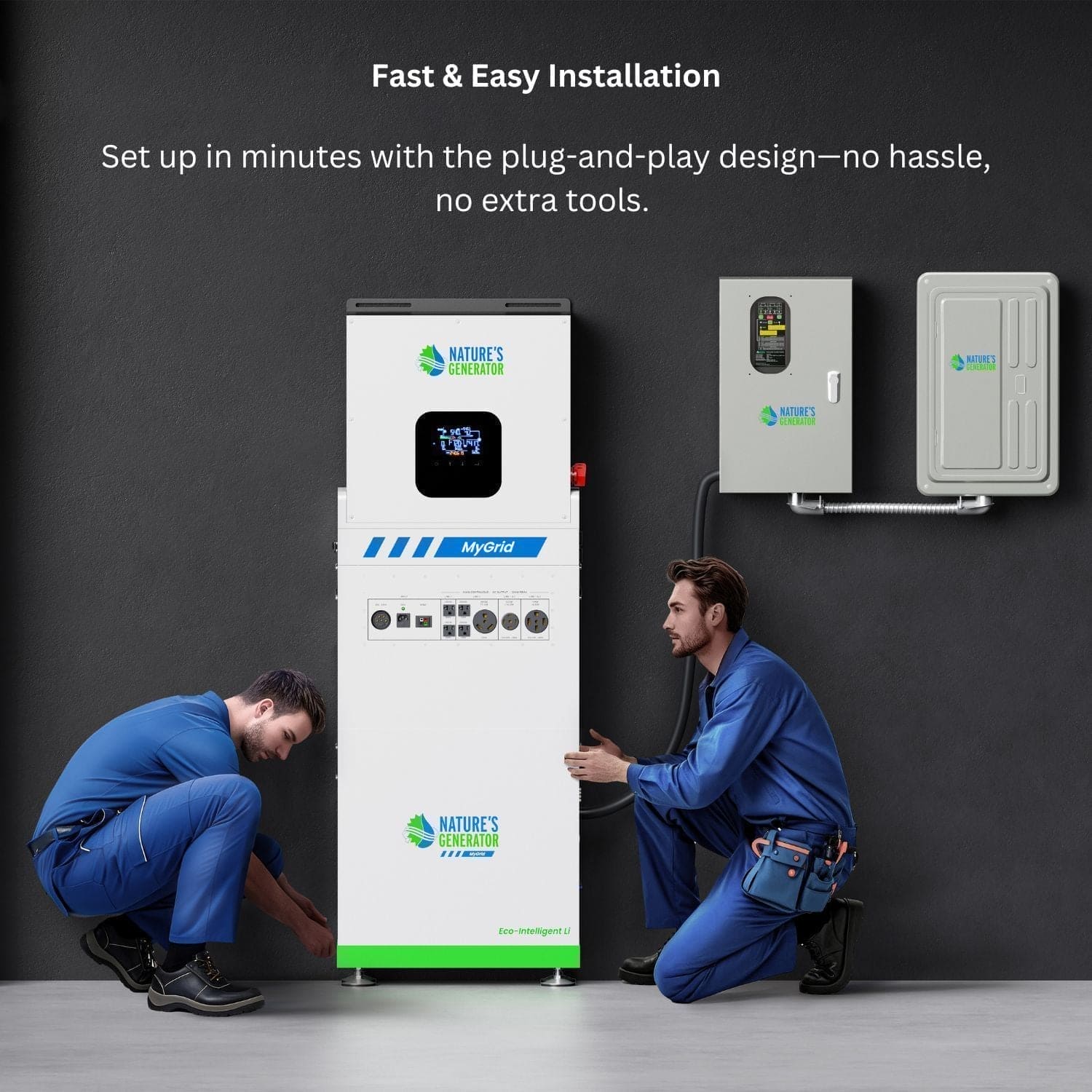

• Fast & Easy Installation: Plug-and-play design ensures quick setup and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
• Reliable 10kW Power: Provides 120V/240V output and a 10,496Wh battery for dependable whole home backup during outages and emergencies.
• Expandable & Scalable: Add batteries, solar panels, or combine two MyGrid 10K units for up to 20kW of power to meet growing energy demands.
• Compact & Versatile Design: Slim and space-saving, ideal for homes, apartments, RVs, or workplaces without compromising performance.
• Integrated Transfer Switch: Includes 50A or 125A automatic transfer switch options for seamless home integration and uninterrupted backup power.
• Eco-Friendly & Versatile Charging: Supports solar, wind, AC, and generator charging options for sustainable whole home energy solutions..
• Easy System Monitoring: LED display tracks battery levels, power usage, and backup time, keeping you in control.

Specifications

Battery:

• Type: Lithium Iron Phosphate (LiFePO4)
• Capacity: 51.2V 205Ah (10496Wh)
• Life Cycles: >6000 Cycles
• Self Discharge: Recommended recharging every 6 months

Inverter:

• Output Continuous Power: 10,000W
• Outpeak Peak Power: 20,000W
• Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
• Output Frequency: 60Hz
• Output Power Form: Pure Sine Wave
• Auto Switching: <20ms

Output Ports:

• 4x NEMA 5-20R Outlest
• 1x NEMA TT-30R Outlet
• 1x NEMA L14-30R Outlet
• 1x NEMA 14-50R Outlet

Input Ports:

• 2x Solar Input Ports
• 1x Wind Input Port
• 1x 120Vac Input Port
• 1x 208Vac or 240Vac Input Port

Charges:

• 120Vac Charger: 1000W
• 208Vac or 240Vac Charger: 4500W
• Wind Charger: 350W
• Solar Charger: 12,000W 120Vdc-550DVdc
• Solar Charge Mode: MPPT

Dimension and Weight:

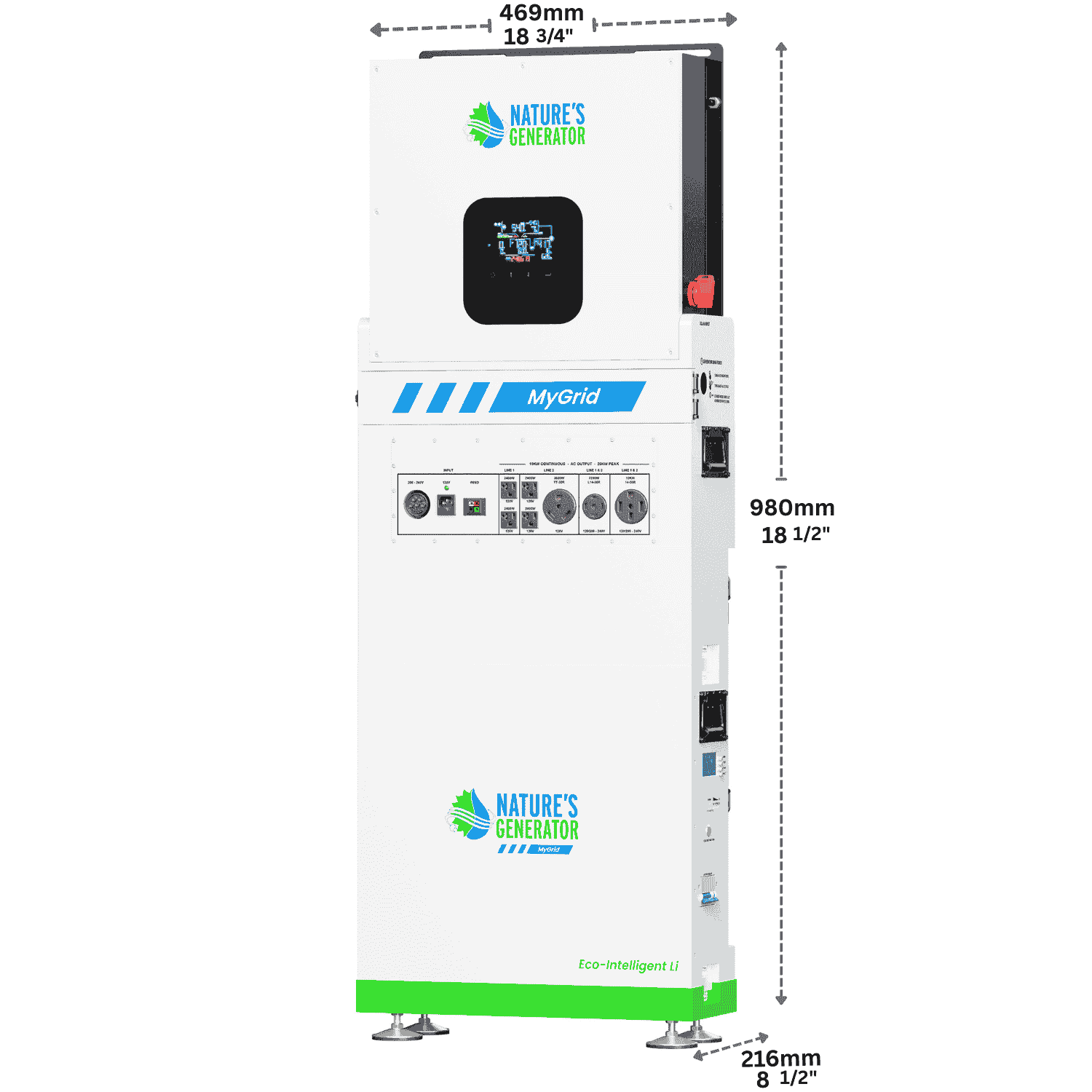

• Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
• Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
• Generator Weight: 152 lbs (69 kg)
• Battery Weight: 213 lbs (96.6 kg)

General:

• Optimal Operating temperature: 68 – 86°F (20 – 30°C)
• Storage Temperature: 14 – 113°F (-10 – 45°C)
• Battery Charging Temperature: 32 – 113°F (0 – 45°C)
• Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

What's Included

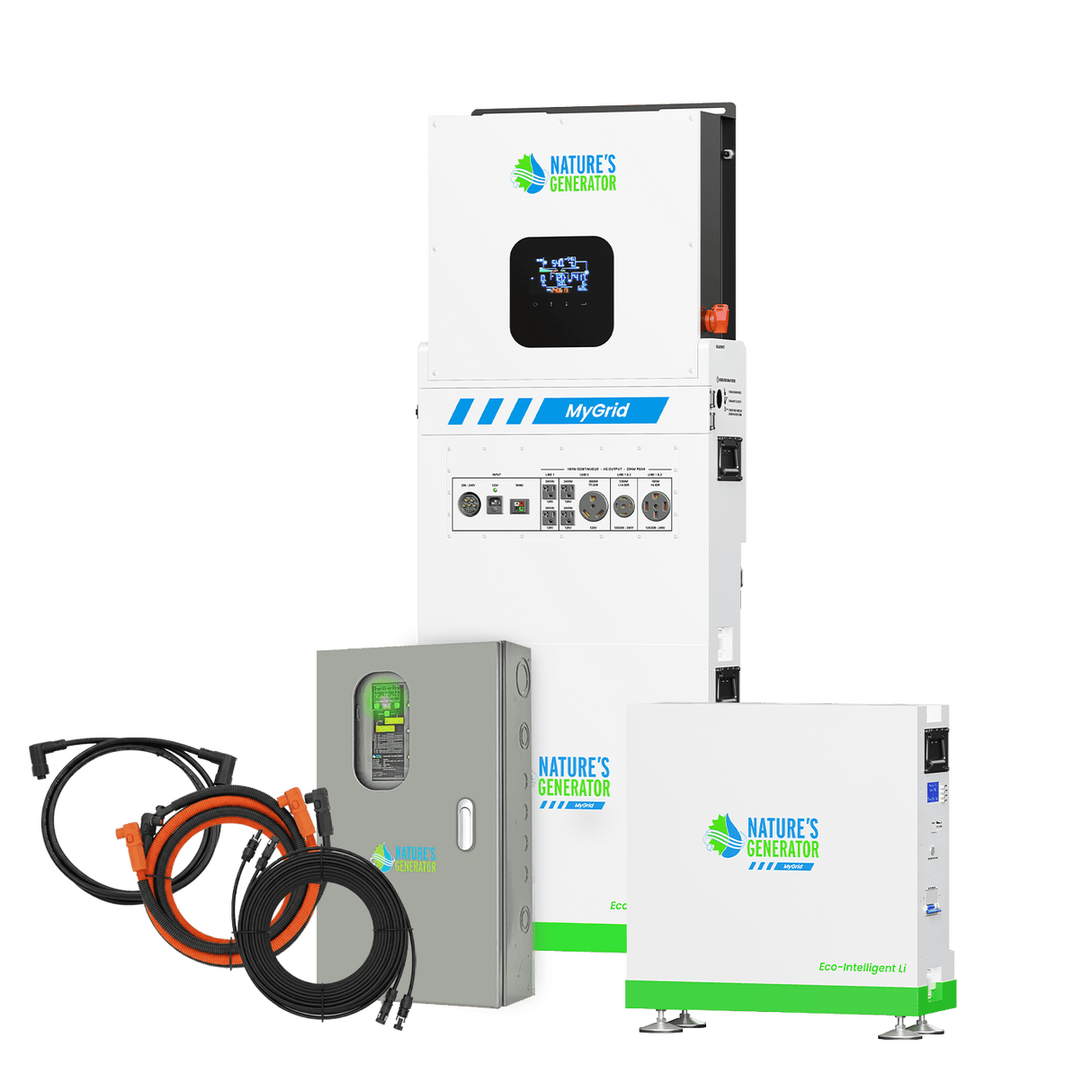

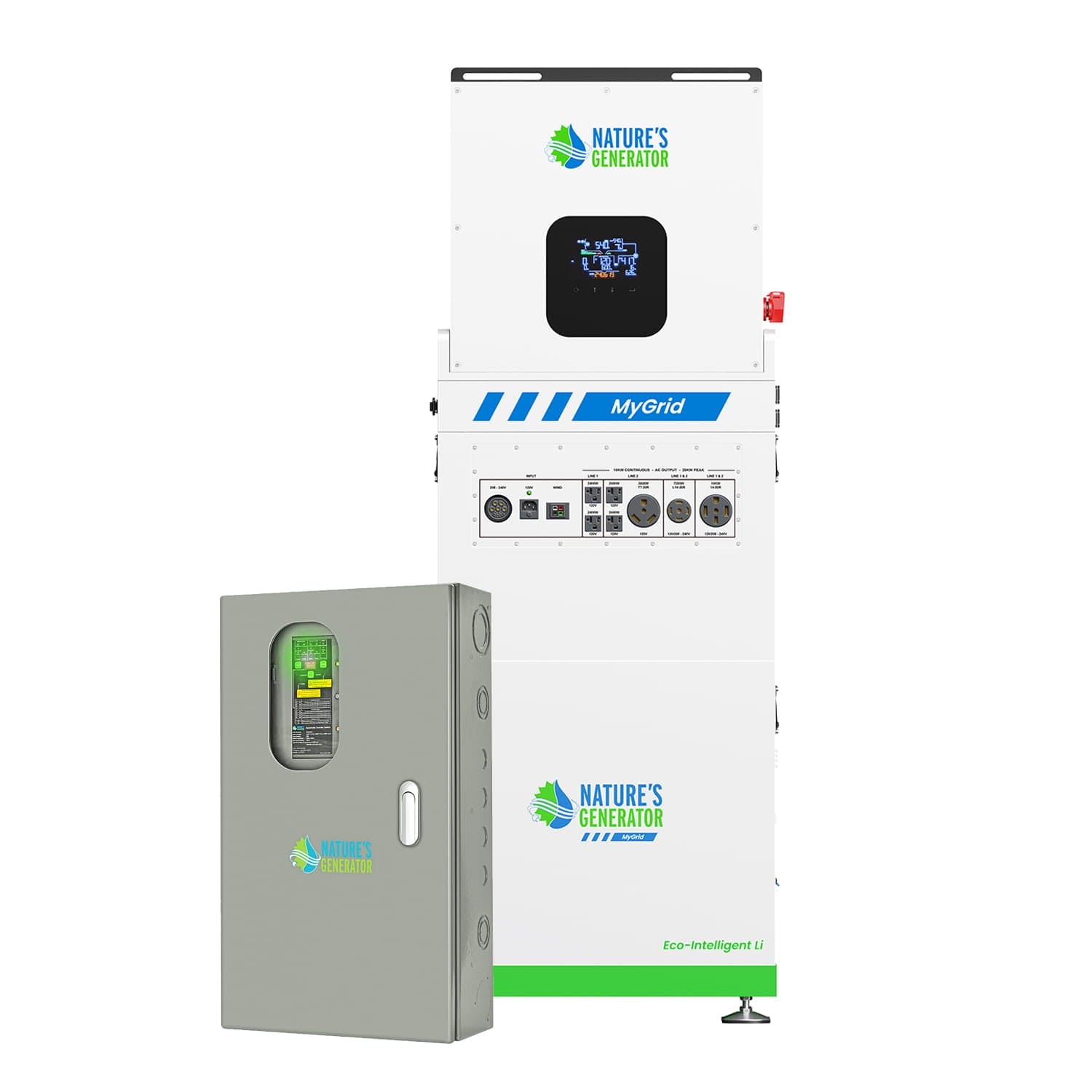

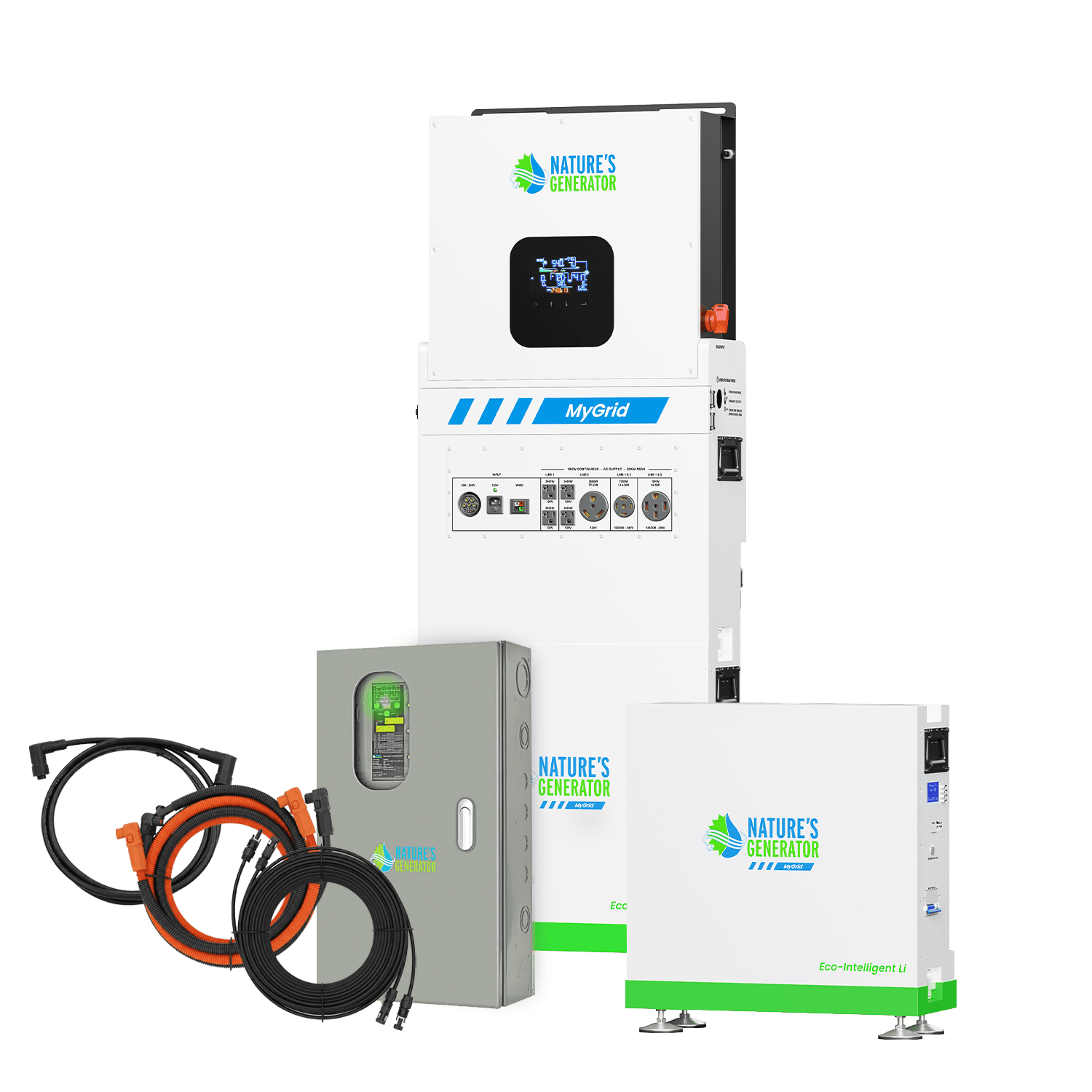

MyGrid 10K House Battery Backup (Base Unit + Transfer Switch)

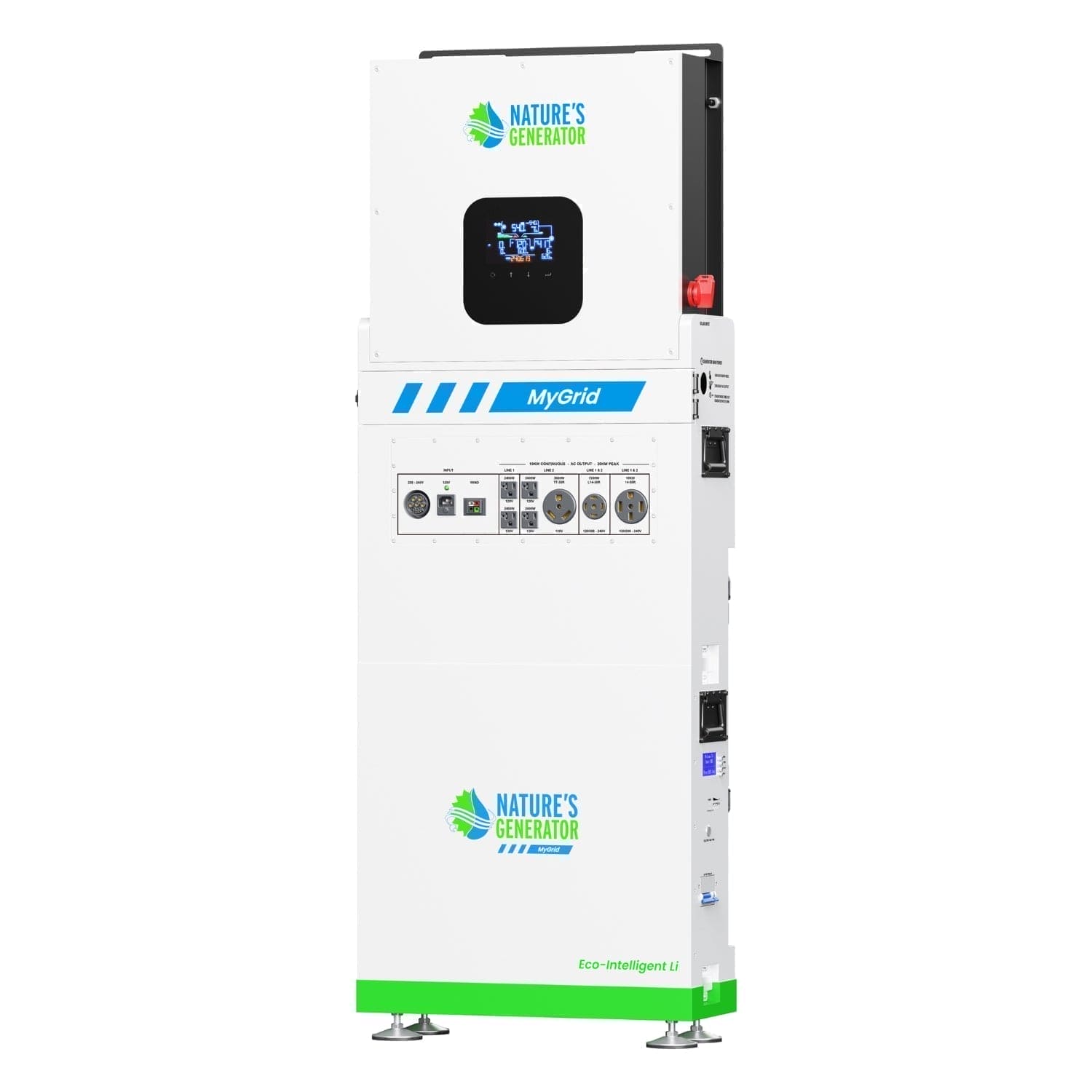

• MyGrid 10K generator

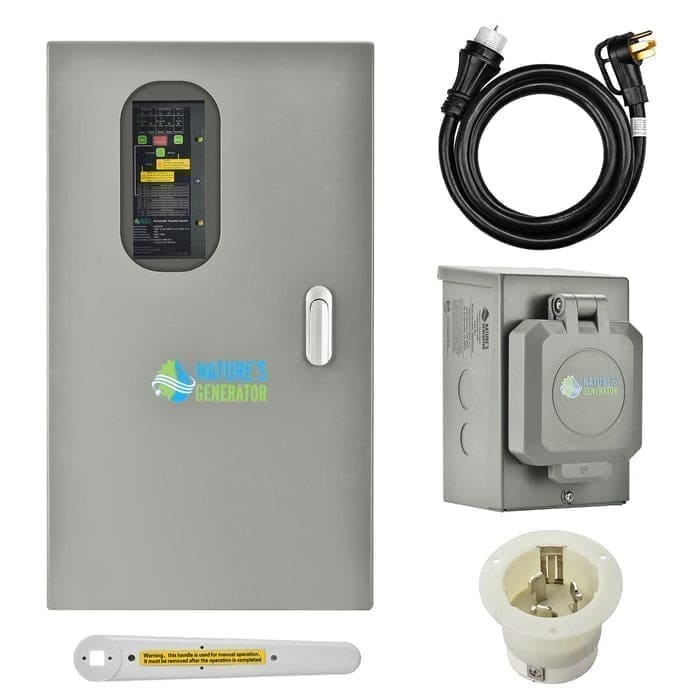

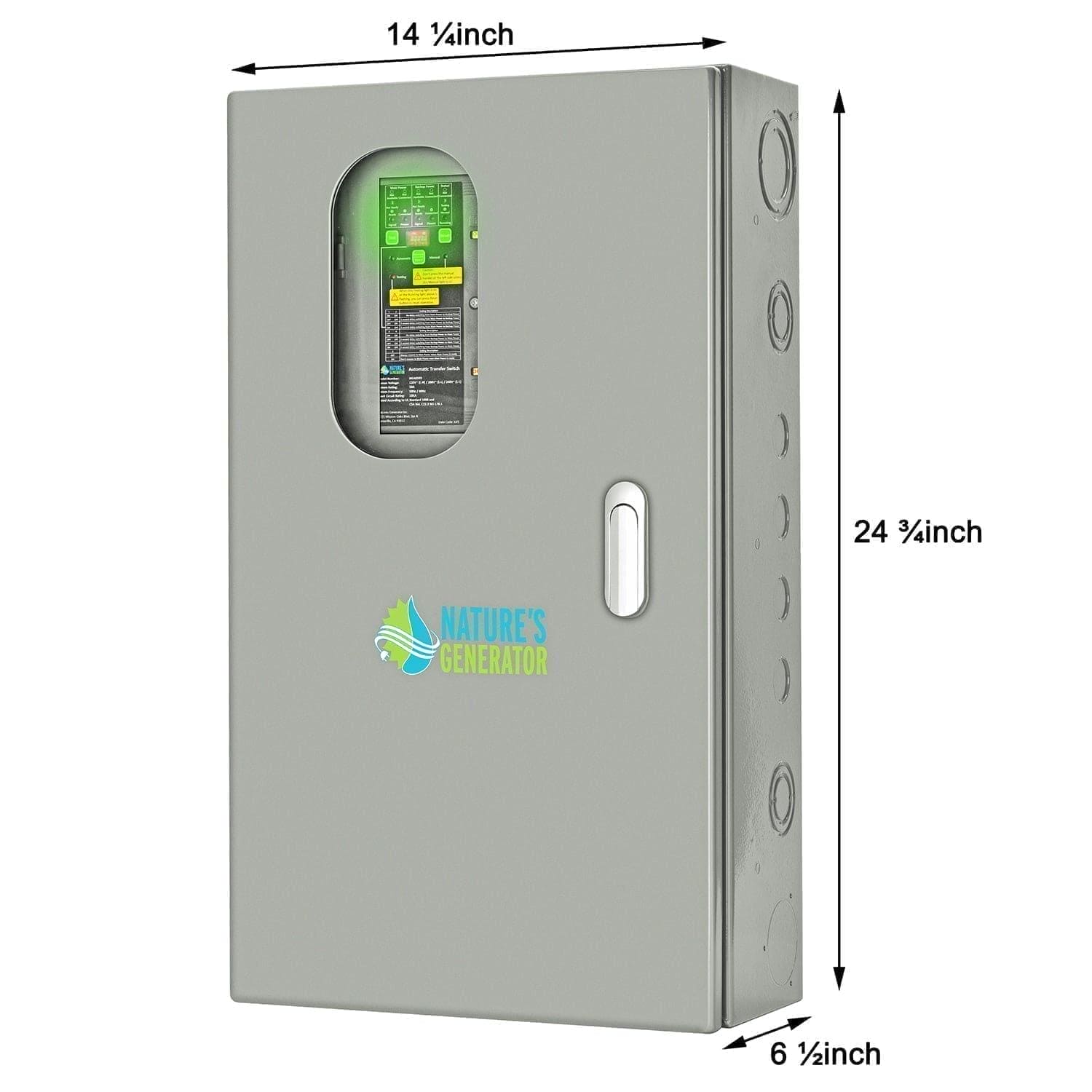

• 50A automatic transfer switch
• AC power cord
• Battery cables
• Generator–battery communication cable
• Side security brackets with screws
• Anchor chains
• User manual

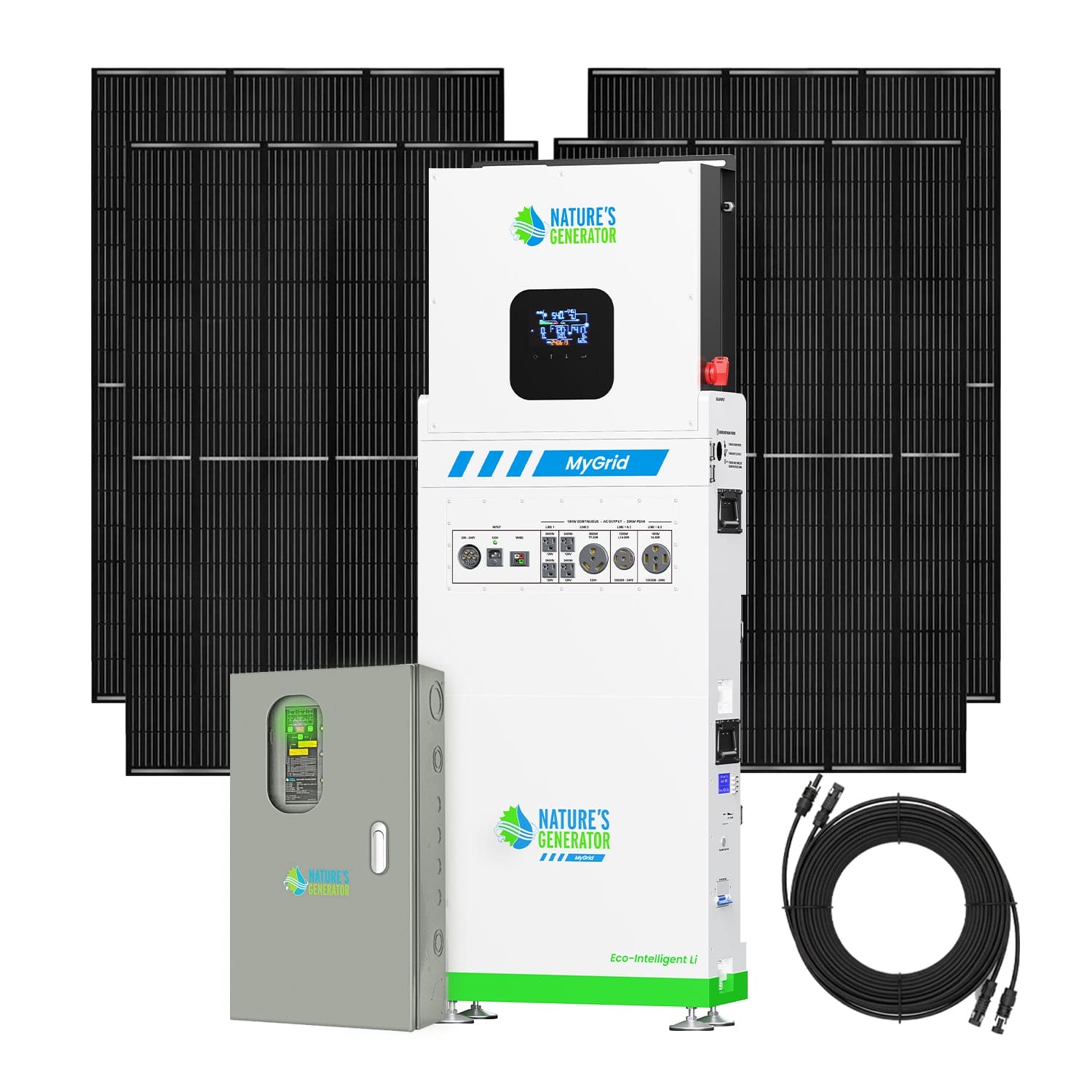

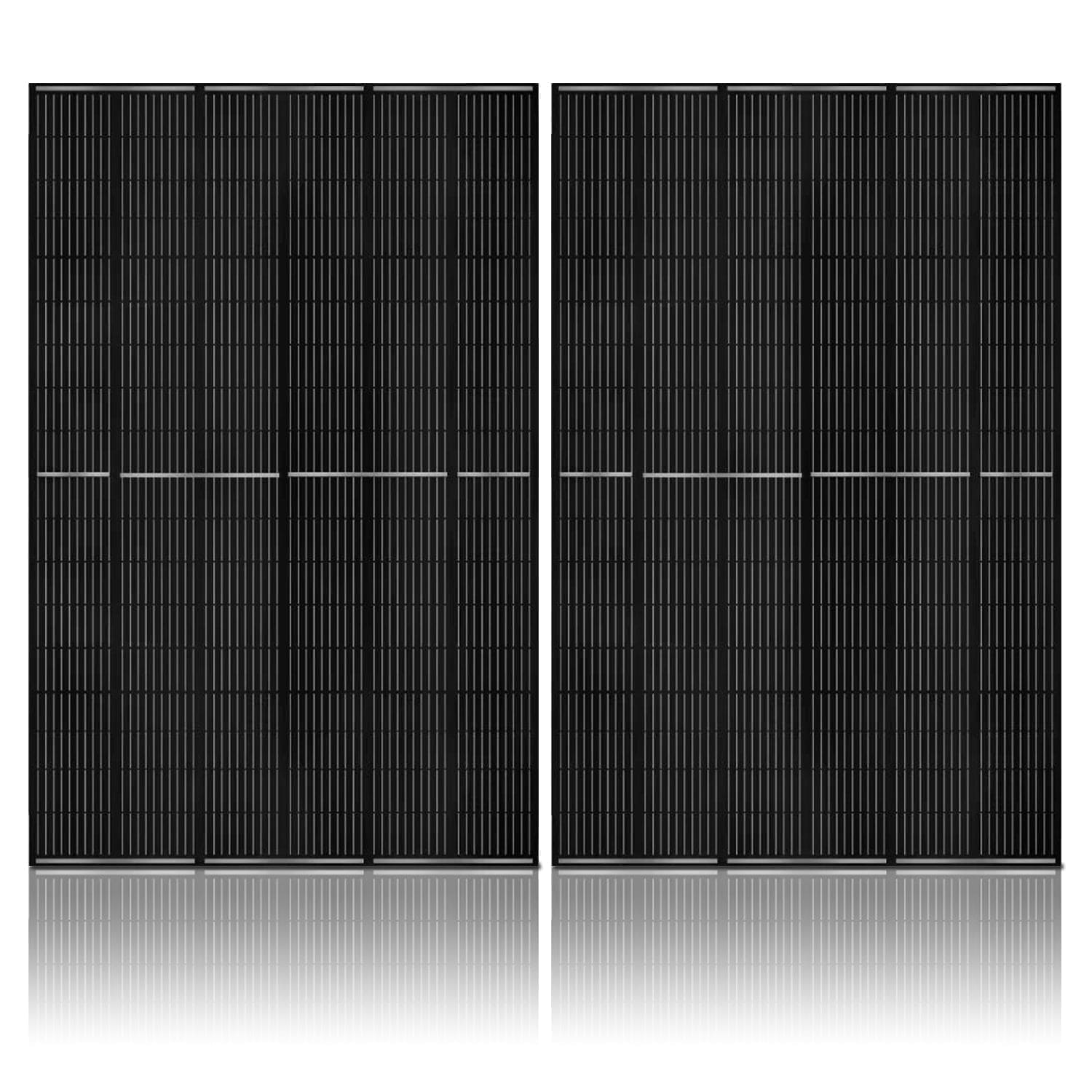

MyGrid 10K + 4 Rigid Solar Panels (410W) + Transfer Switch

• MyGrid 10K generator

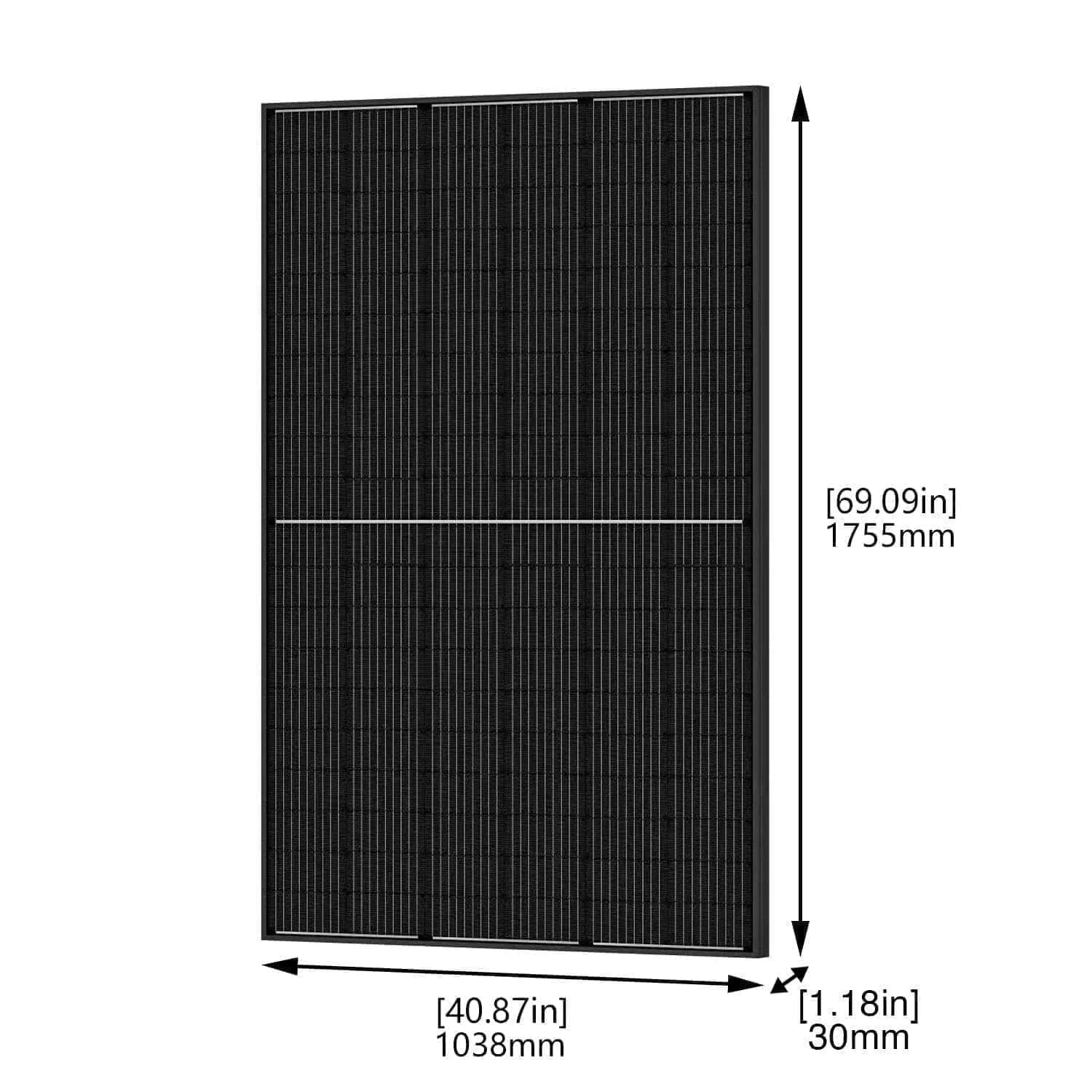

• 4 × 410W rigid solar panels
• 50A automatic transfer switch
• AC power cord
• Battery cables
• Generator–battery communication cable
• Side security brackets with screws
• Anchor chains
• User manual

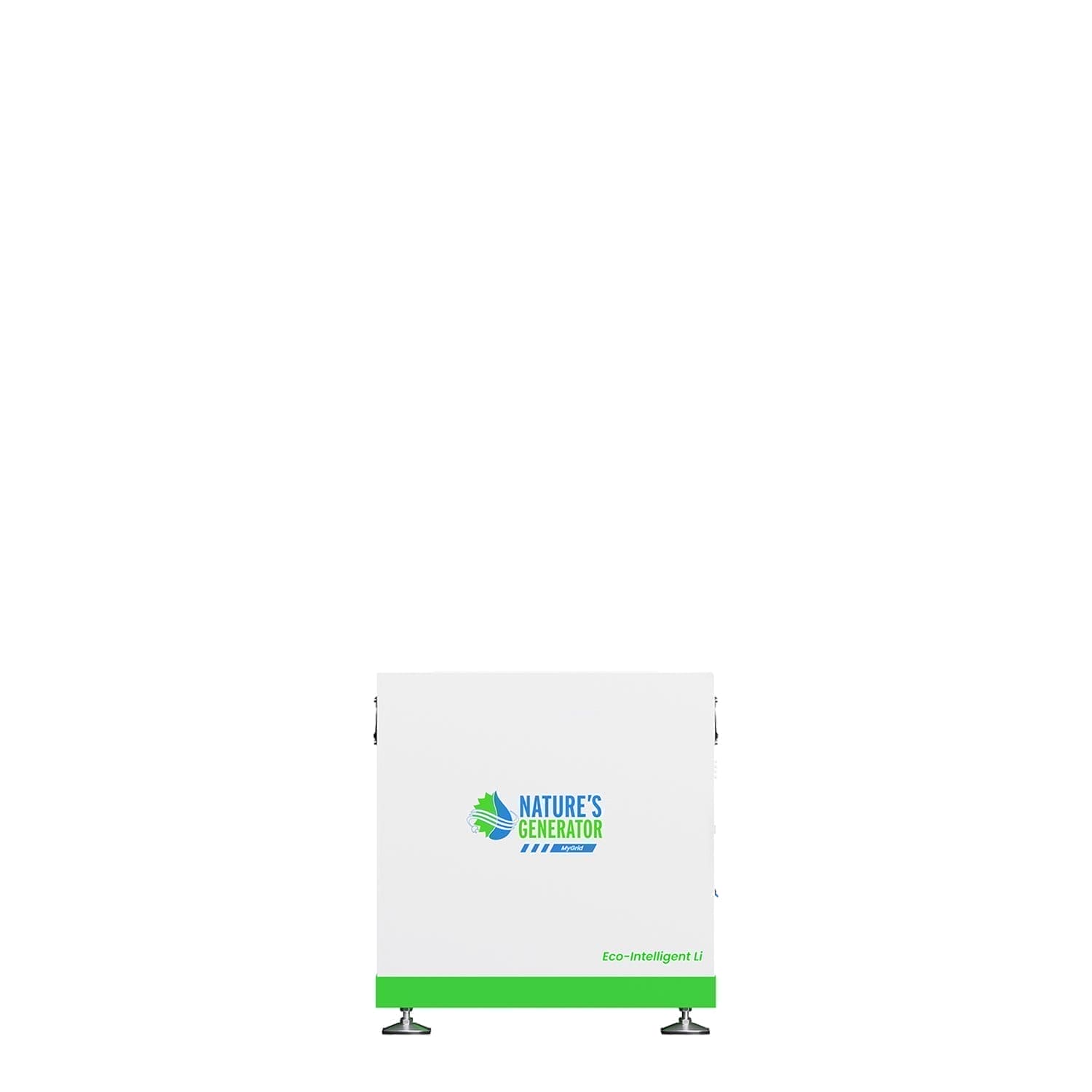

MyGrid 10K + 2 MyGrid 10K Batteries + Transfer Switch

• MyGrid 10K generator
• 2 × MyGrid 10K batteries
• 50A automatic transfer switch
• AC power cord
• Battery cables
• Generator–battery communication cable
• Side security brackets with screws
• Anchor chains
• User manual

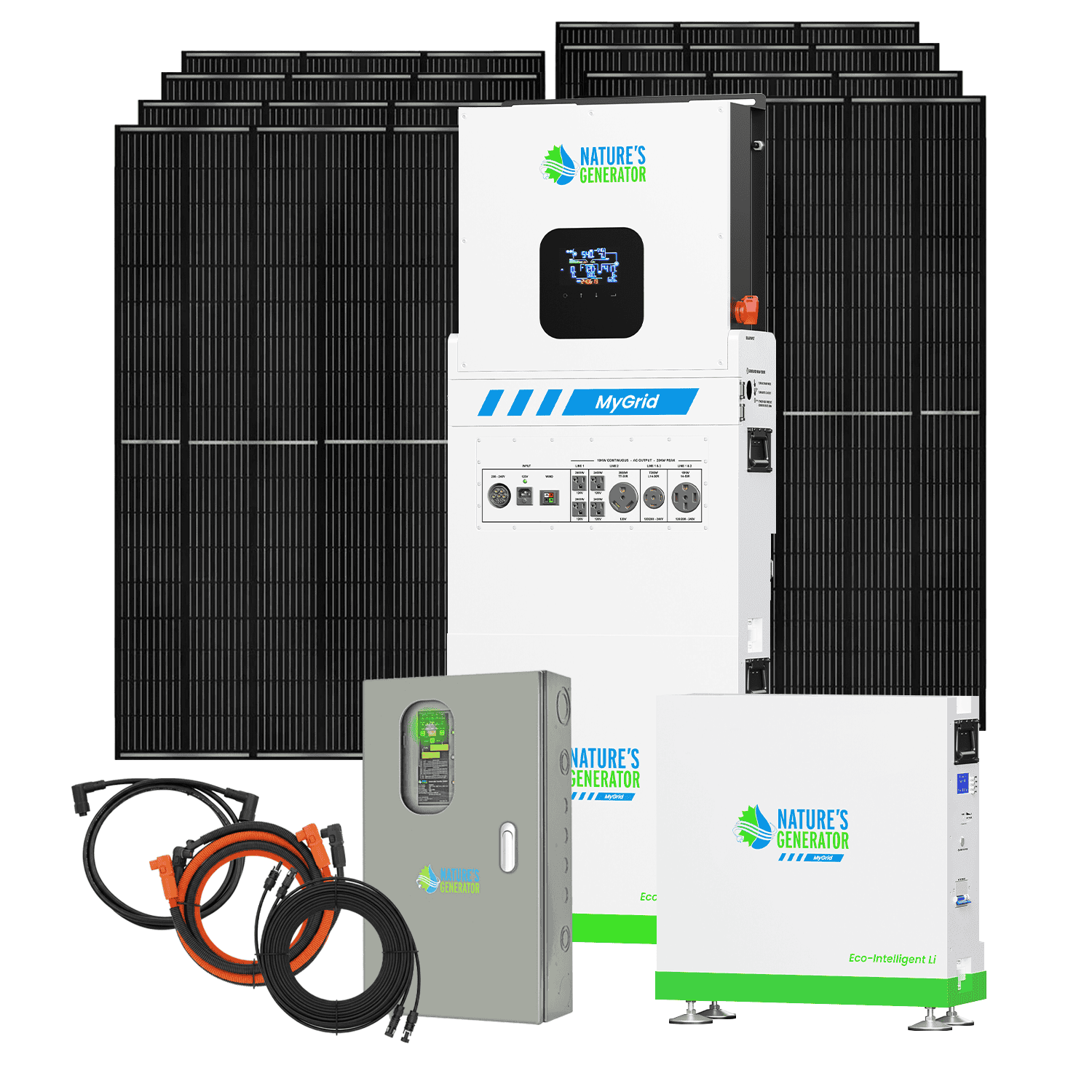

MyGrid 10K + 2 MyGrid 10K Batteries + 8 Rigid Solar Panels (410W) + Transfer Switch

• MyGrid 10K generator
• 2 × MyGrid 10K batteries
• 8 × 410W rigid solar panels
• 50A automatic transfer switch
• AC power cord
• Battery cables
• Generator–battery communication cable
• Side security brackets with screws
• Anchor chains
• User manual

View and Download

• User Manual
