PELLET DUO 1000 | 3400K BTU High-Efficiency Automated Pellet Boiler

PELLET DUO 1000 | 3400K BTU High-Efficiency Automated Pellet Boiler
92% Efficiency Pellet Boiler with Extended Autonomy (Up to 2 Weeks)

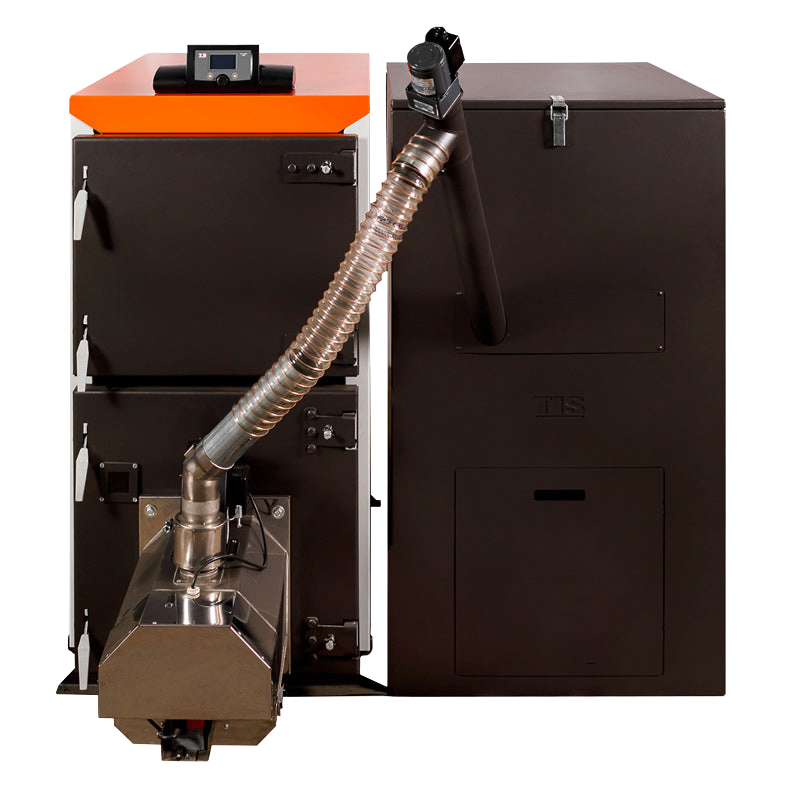

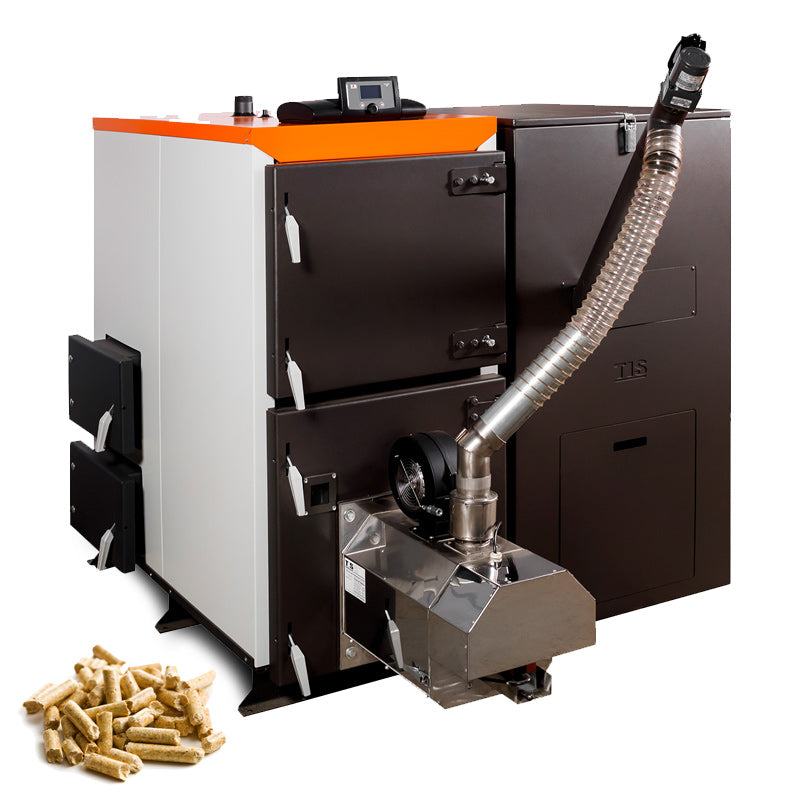

The Pellet Duo 1000 is a high-capacity, fully automated commercial-grade pellet boiler designed to deliver reliable and efficient heating for spaces up to 110,000 ft². Built for versatility, it burns wood pellets as well as corn, flax, sunflower husks, grains, and cherry pits. An integrated self-ignition burner makes startup seamless.

Product Overview:

• Heating Capacity: Up to 110,000 ft²

• Weight: 3,600 lb

• Dimensions: Width: 60 ½" | Depth: 44" | Height: 66"

• Manual Firebox: 56 gal — accommodates logs up to 48"

• Automatic Hopper: 635 gal — holds up to 3,200 lb of pellets

• Manufactured in: Europe

• Grade: Commercial Use Only

Main Features:

• All-in-One Smart Controller
  Calibrate and adjust the boiler remotely, ensuring easy management without leaving your home or office.

• High Energy Savings
  Burning just 1 ton of pellets equals the heat output of:
  • 3,527 lb of firewood
  • 132 liters of diesel
  • 181 liters of heating oil

• Proven, Certified Technology
  Over 65,000 Pellet Duo units sold worldwide. Fully certified to meet EN 303-5 and EIN emission and safety standards.

• Real-Time Monitoring
  Get instant feedback on system performance, fuel levels, and temperature changes.

• Virtually Silent Operation
  Designed for low-noise performance — undetectable from just 10 feet away.

• Built for Longevity
  Manufactured with high-grade ASTM A106 certified boiler steel, featuring a multi-layer powder coating, 2" non-combustible insulation, and thermal safety systems. Backed by a 10-year warranty and spare parts availability.

Reliable Heating Performance

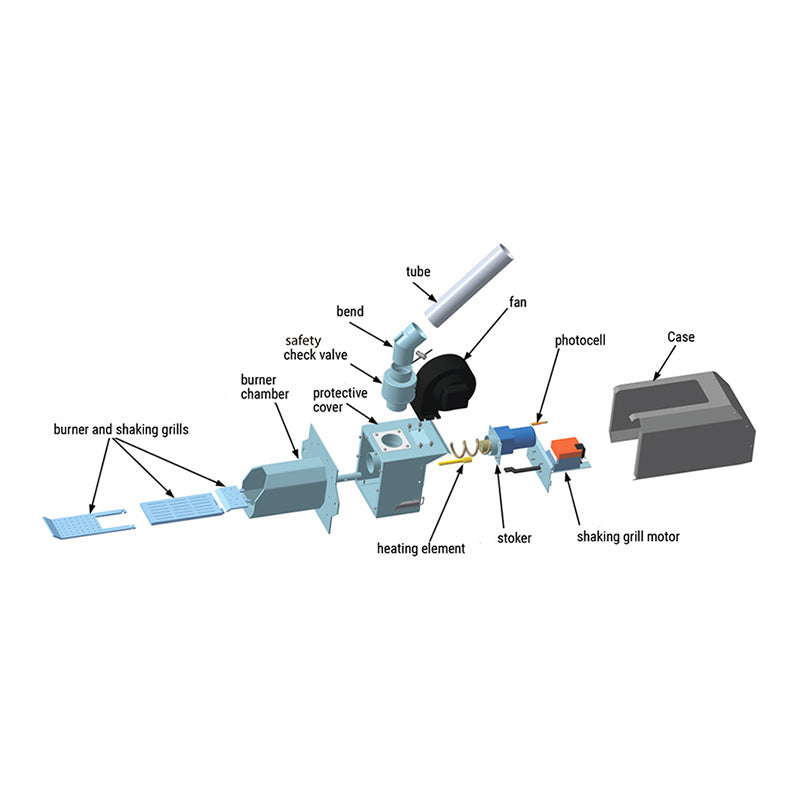

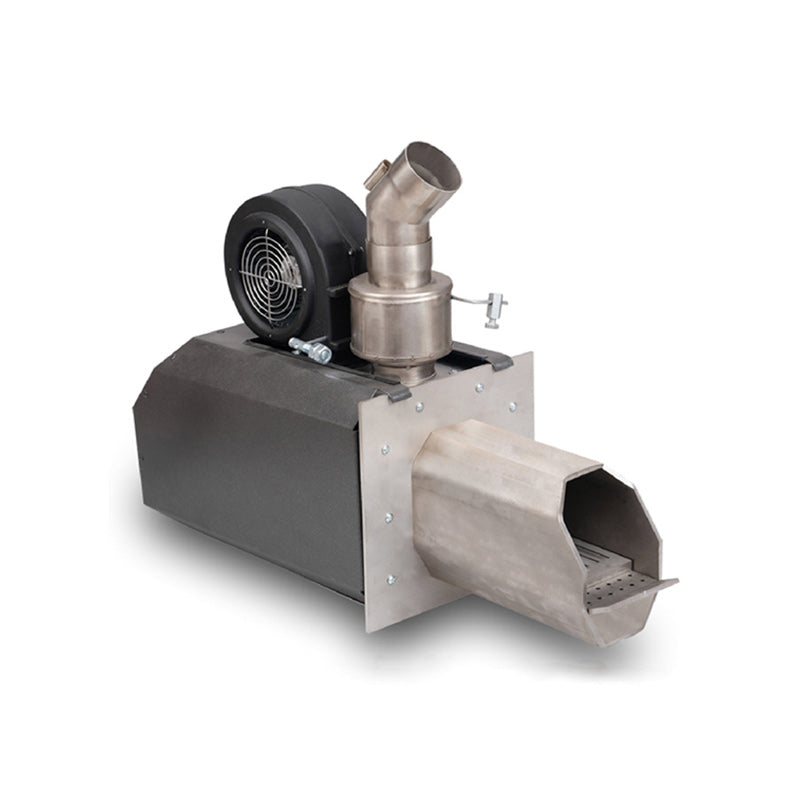

Pellet Duo is engineered for consistent and efficient combustion, extracting maximum heat from each fuel load with a guaranteed efficiency of 92%. It uses a stainless steel self-cleaning burner, integrated flame sensor, motorized feeding auger, and a moving grate system for automatic ash removal.

Intelligent Automation:

Equipped with the TIS Tronic 496p Controller, the boiler intelligently manages:

• Combustion based on exhaust sensors, fuel type, weather, and user settings

• Central heating and hot water pumps (CH & DHW)

• Zone mixing, direct heating, and buffer tanks

• Summer/winter operating modes

• Automatic standby and reignition

The large capacity hopper allows for continuous heating autonomy of 4 to 10 days, depending on demand and fuel volume.

Technical Specifications:

Electrical Specifications:

• Power Supply: 230V~, 60Hz

• Regulator Current: 0.2 A

• Max Rated Current: 6 A

• IP Rating: IP20

• Ambient Operating Temp: 0...50°C

• Storage Temp: 0...65°C

• Humidity: 5-85% (non-condensing)

• Sensor Measurement Range: -35 to 100°C

• Display: 128x64 Graphical

• Regulator Dimensions: 340 x 225 x 60mm

• Weight: 1.6 kg

• Certified to: PN-EN 60730-2-9 / PN-EN 60730-1

Built for Easy Maintenance

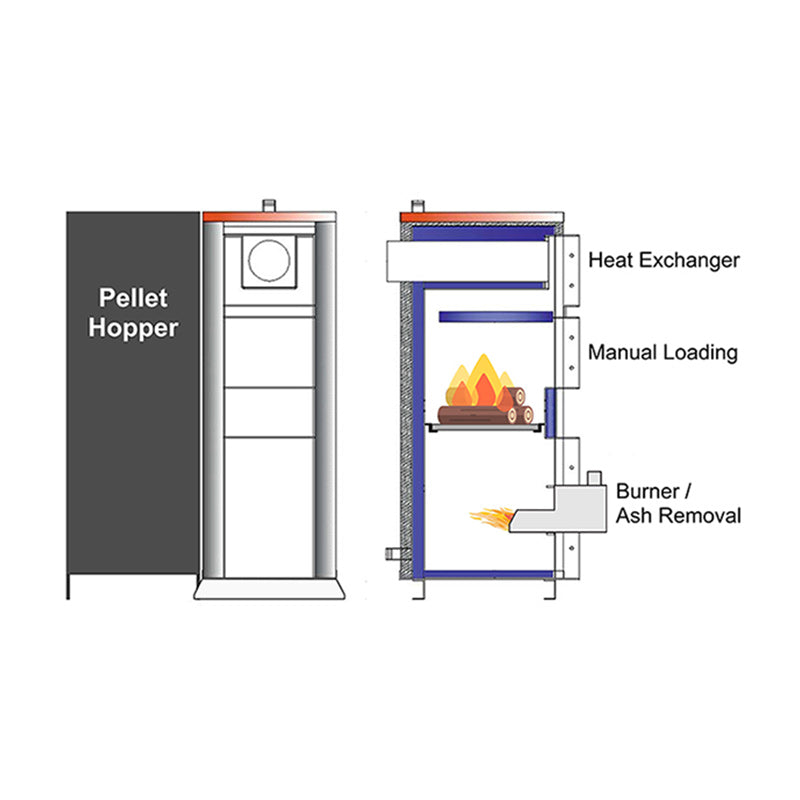

Designed for practical operation, all cleaning and servicing can be performed from the front. Large door openings allow easy access to the heat exchanger, firebox, and ash compartments without the need to disassemble components.

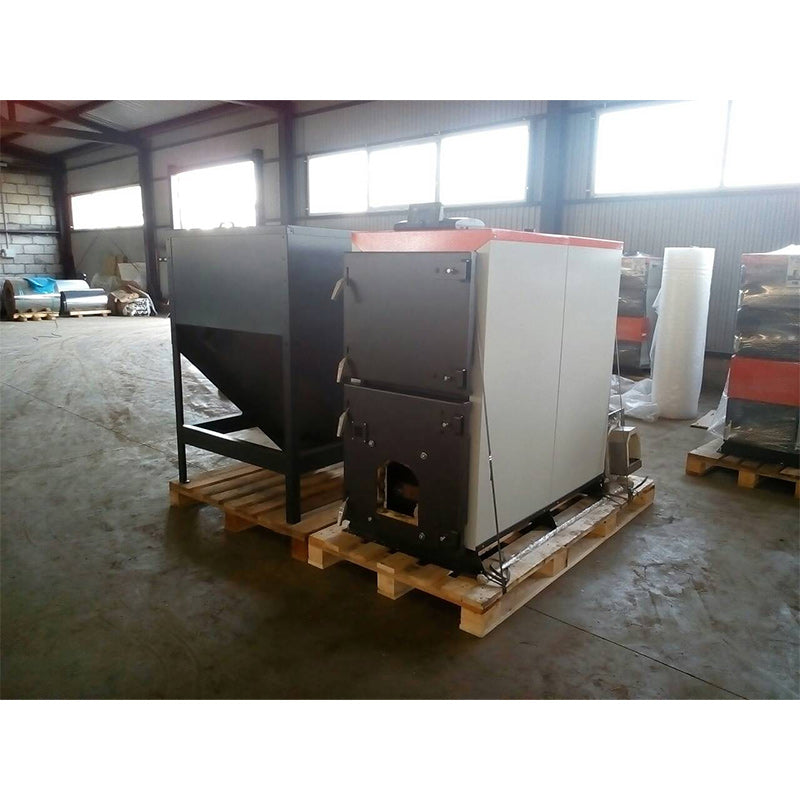

The included hopper, crafted from durable zinc-coated steel, is designed for simple assembly on-site, ensuring a smooth installation process.

Warranty: 10 Years
