SmokeMaster C-12 E-Cig Ceiling Mount Electronic Air Cleaner

SmokeMaster C-12 E-Cig Ceiling Mount Electronic Air Cleaner

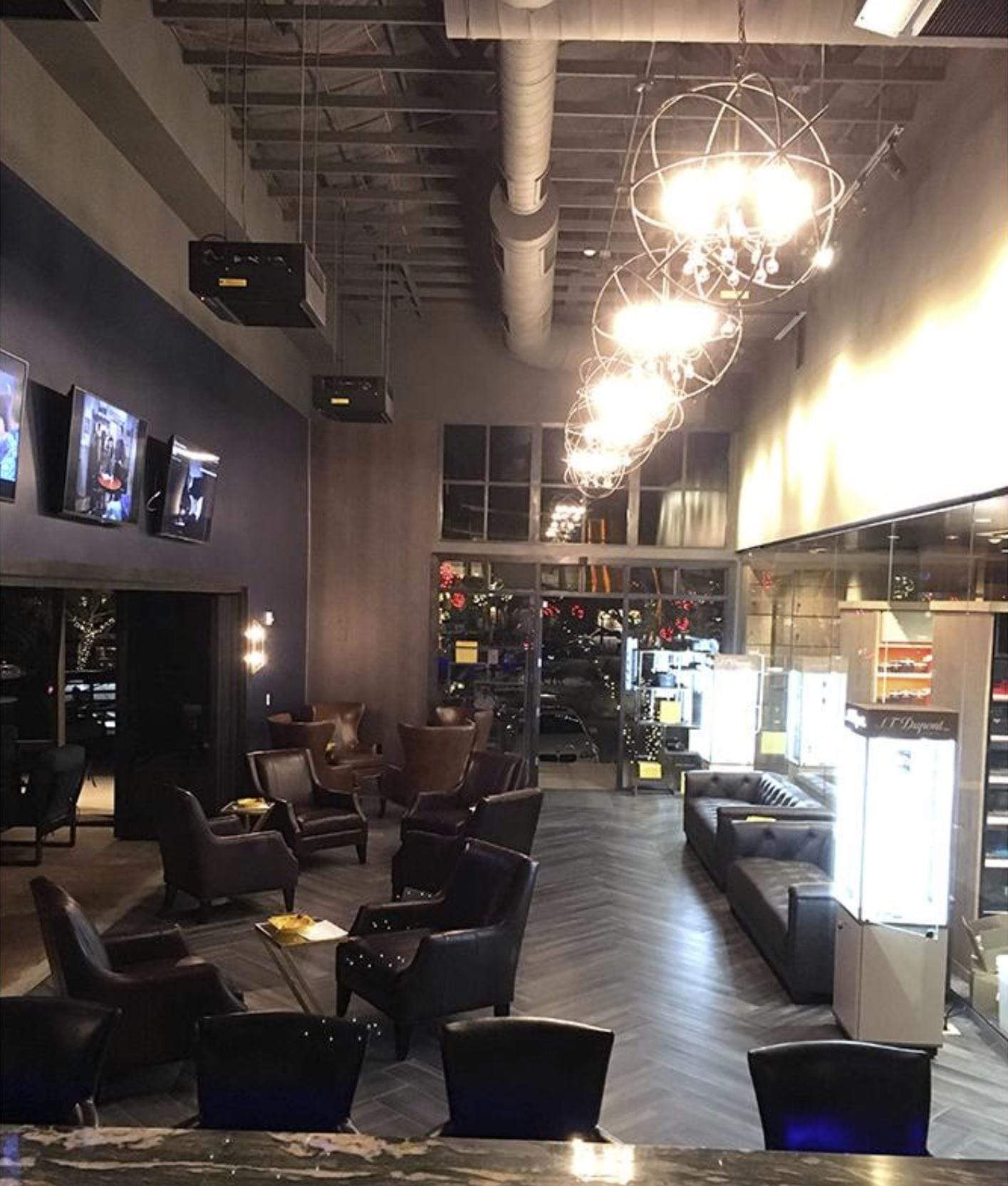

The SmokeMaster C-12 E-Cig Ceiling Mount Electronic Air Cleaner is specifically designed to handle smoke from electronic cigarettes, delivering exceptional performance in removing odors, airborne particles, and other irritants. Engineered for vape shops, bars, and other commercial establishments where e-cigarettes are frequently used, it helps improve indoor air quality while assisting businesses in meeting non-smoking ordinances.

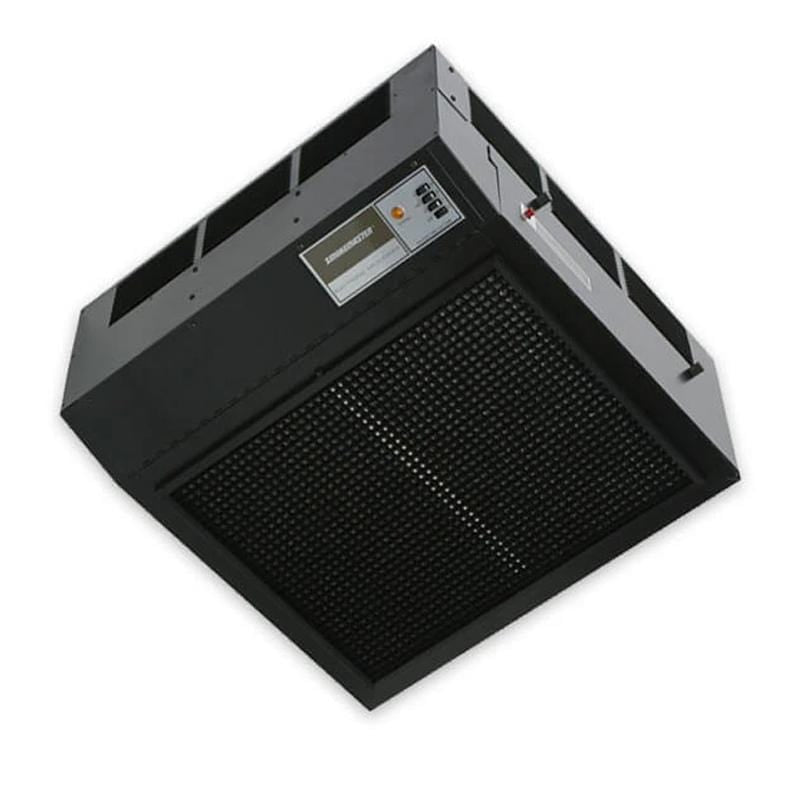

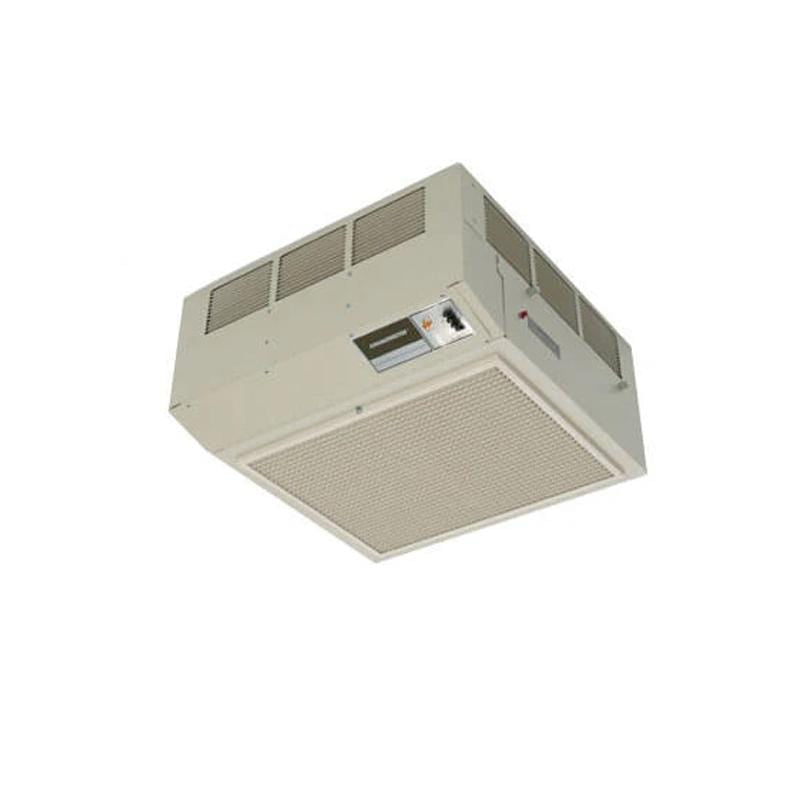

Constructed from galvanized steel with a durable powder-coated finish available in Black or Ivory, the C-12 provides coverage for areas up to 1,000 square feet. Its three-speed motor-driven fan delivers airflow from 800 to 1,250 CFM, ensuring efficient air circulation and effective contaminant removal in demanding commercial environments.

The SmokeMaster C-12 utilizes a four-way Coanda recirculation system to maximize the amount of contaminated air pulled into the unit. Air first passes through a washable aluminum mesh pre-filter before entering specially engineered electronic cells with ceramic insulators that capture up to 99.8% of airborne contaminants. Optional carbon post filters further reduce odors, volatile organic compounds (VOCs), and gases for cleaner, fresher air.

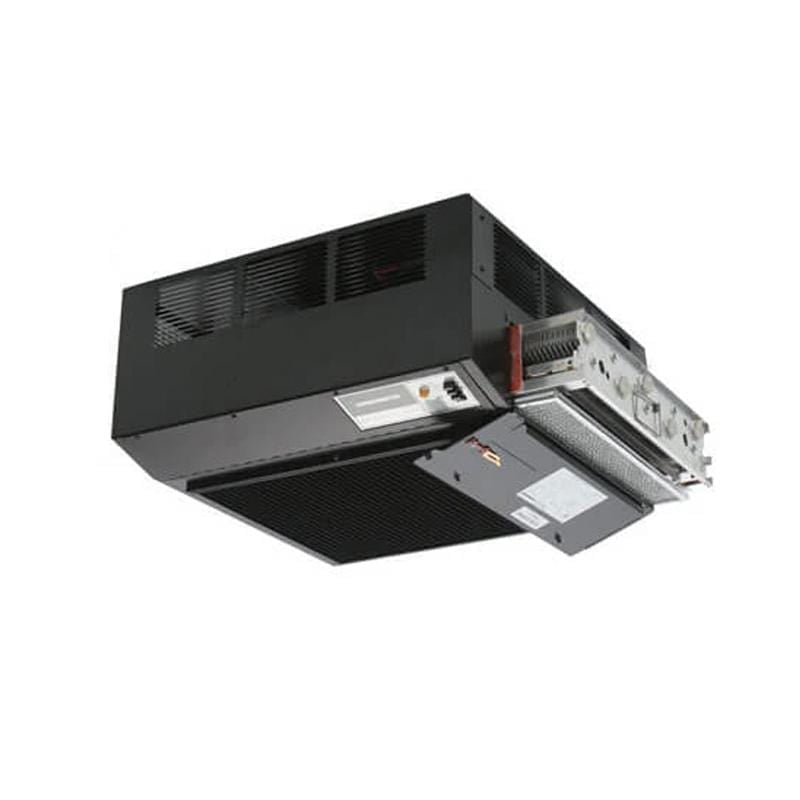

Designed for easy installation and maintenance, the C-12 can be ceiling-mounted or wall-mounted to suit different applications. Its hinged access door allows quick filter cleaning, while the safety interlock automatically disconnects power when the door is opened. A system indicator lamp monitors electrical output and alerts users to any system malfunction, helping ensure reliable long-term performance.

Multidirectional Airflow with E-Cigarette Filter

The SmokeMaster C-12 industrial air cleaner uses the four-way Coanda recirculation method which highly maximizes the amount of contaminated air pulled into the machine. The more air reaches the smoke eater, the better air cleaning results. This commercial air cleaner comes with a retrofit kit which includes two electronic cells engineered for e-cigarette smoke, an e-cigarette custom power supply, and an e-cigarette drip tray.

First, the air enters the washable aluminum mesh Pre-Filter which catches large particles such as hair, lint, and pollen before they can go into the electronic cell. Next, the air passes the E-Cigarette Electronic Cells with ceramic insulators that trap 97% of airborne contaminants on each pass. The ionizing section of the electronic cell electrically charges ultra-fine airborne particles, pushing them to be attracted and held by the heavy-duty collector plates. Lastly, the optional Carbon Post Filters effectively remove odors, volatile organic compounds (VOC), and gases for the freshest air quality.

Multiple Installation Options

The SmokeMaster C-12 E-cigarette air cleaner offers various installation options to suit your needs – ceiling-mount, wall-mount, light decorative chain or cable, or a 3/8” threaded rod. This smoke eater is best installed in areas nearest to the cigar smoke concentration. Please note that the SmokeMaster C-12 air filtration system does not include the mounting hardware. Holes are pre-drilled through the air cleaner which fits most ceiling joists. Both the wall mounting kit and ceiling mount lag screw kit are sold separately and readily available for purchase.

Features

• Specifically designed for e-cigarette and vape shop applications
• Covers areas up to 1,000 sq. ft.
• Three-speed motor with airflow up to 1,250 CFM
• Four-way Coanda recirculation airflow
• Washable aluminum mesh pre-filter
• E-cigarette electronic cells with ceramic insulators
• Optional heavy-duty pre-filter
• Optional carbon post filters for odor, VOC, and gas removal
• Ceiling or wall mount installation
• Hinged access door for easy maintenance
• Safety interlock disconnects power when access door is opened
• System indicator lamp monitors electrical output
• Durable galvanized steel cabinet with powder-coated finish

Specifications

View and Downloads
