WhisperKOOL Ceiling Mount 8000 Ductless Split Wine Cellar Cooling System

WhisperKOOL Ceiling Mount 8000 Ductless Split Wine Cellar Cooling System

The WhisperKOOL Ceiling Mount 8000 Ductless Split Wine Cellar Cooling System is a high-performance solution designed for larger wine cellars up to approximately 2,000 cubic feet when properly insulated and sealed with a vapor barrier. Its ductless split design separates the evaporator and condenser, allowing for quiet operation inside the cellar while positioning heat-producing components remotely for improved efficiency.

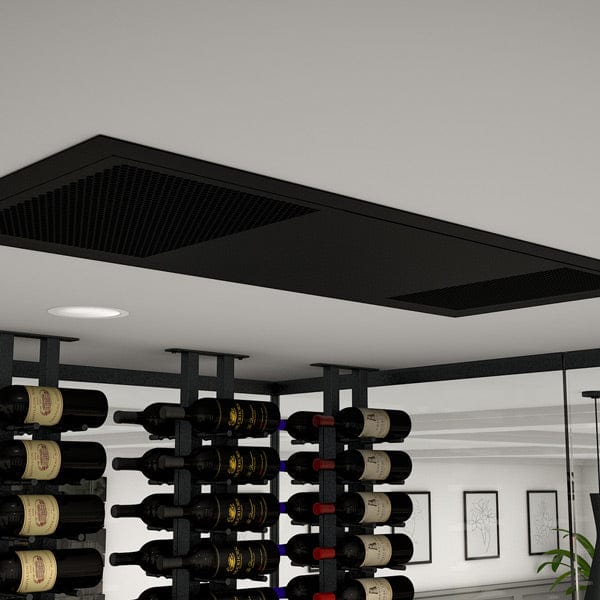

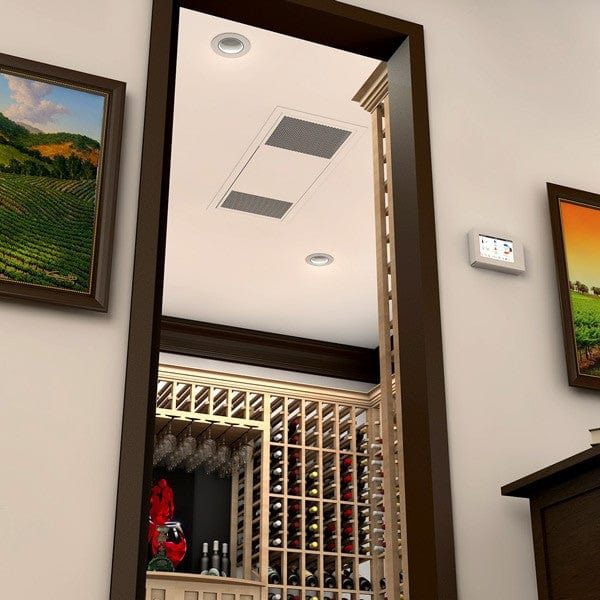

Engineered for both residential and light commercial applications, this system features a flush ceiling-mounted evaporator that blends seamlessly into the cellar, maximizing wall space for racking. By drawing in warm air that rises to the ceiling and redistributing cooled air evenly, it ensures consistent temperature control throughout the space.

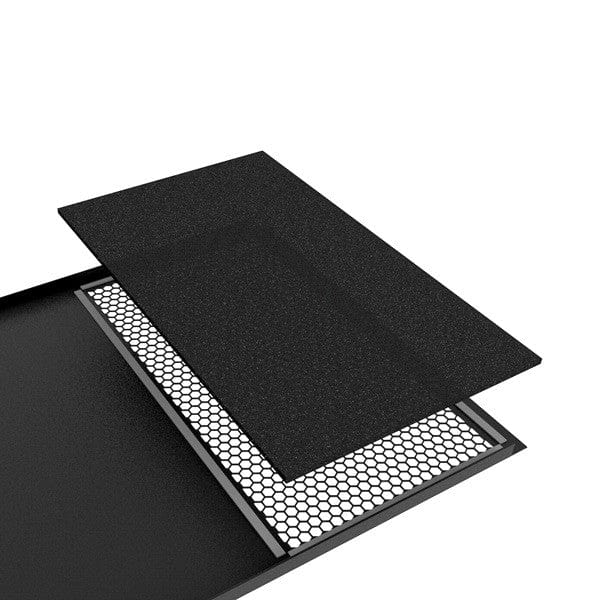

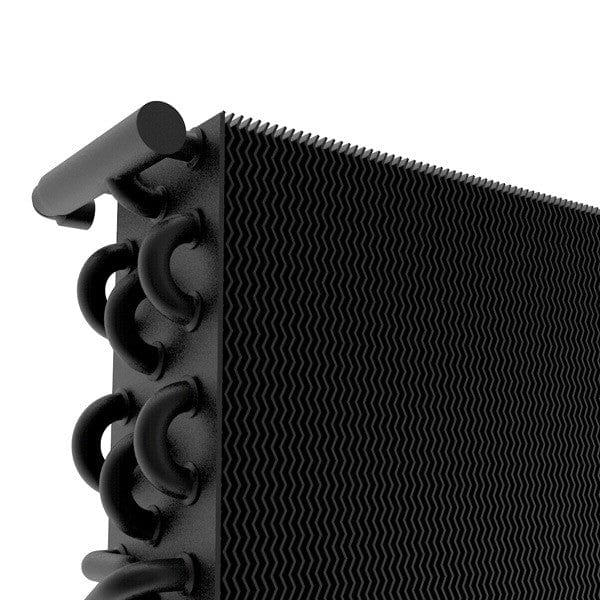

The unit is equipped with advanced controls including a KDT digital touch display and a liquid-temperature bottle probe, providing accurate monitoring of actual wine temperature rather than ambient air. Its durable construction, including coated evaporator coils and built-in air filtration, supports long-term performance and reliability.

Designed for flexibility, the system supports extended line set lengths and remote condenser placement, making it ideal for custom installations. With quiet operation and efficient cooling, the WhisperKOOL Ceiling Mount 8000 helps maintain optimal conditions for preserving valuable wine collections.

Is the Ceiling Mount 8000 Right for Your Cellar?

The Ceiling Mount 8000 is designed for:

• Wine cellars up to 2,000 cubic feet
• Fully insulated rooms (R-19 walls recommended minimum)
• Proper vapor barrier on the warm side of insulation
• Residential and light commercial projects

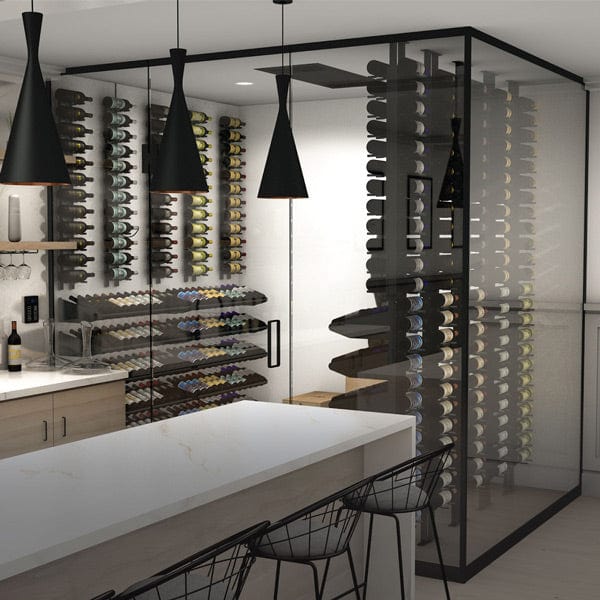

• Glass wine walls where aesthetics matter
• Projects requiring remote condenser placement

This System May NOT Be Appropriate If:

• The cellar lacks a vapor barrier
• The room contains excessive uninsulated glass
• The condenser will operate in unventilated attic conditions exceeding 110°F
• Electrical service cannot support a dedicated 115V circuit
• DIY installation is planned

Improper sizing or construction is the most common cause of cooling failure.

How the Ceiling Mount 8000 Works

This is a ductless split cooling system, meaning:

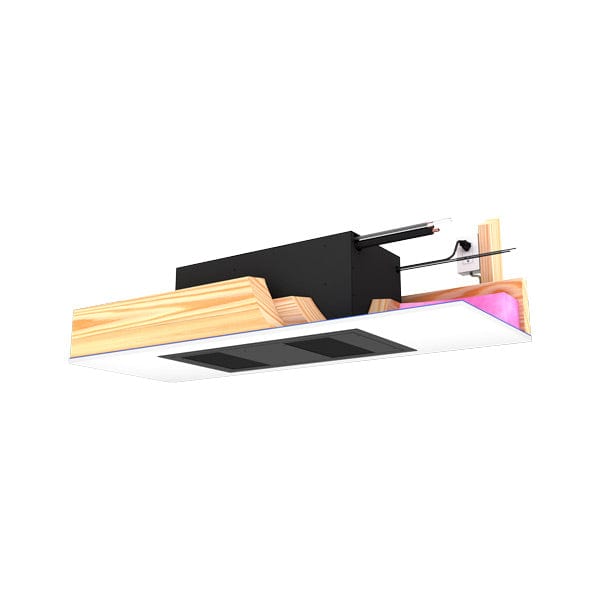

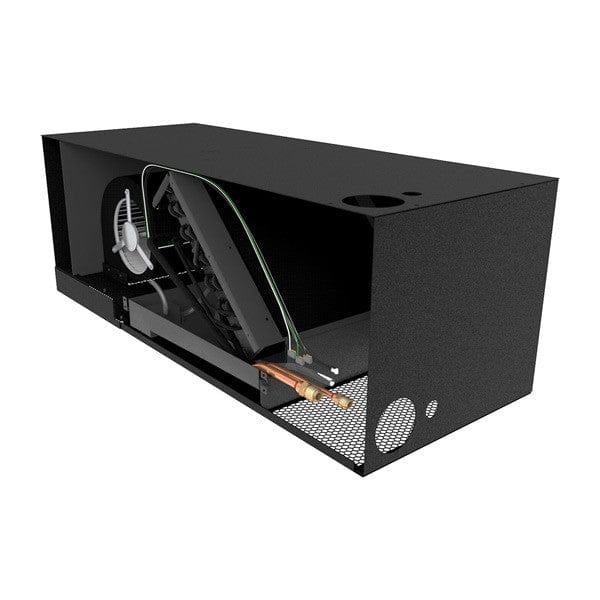

• The evaporator (fan coil) installs inside the cellar, flush between ceiling joists.

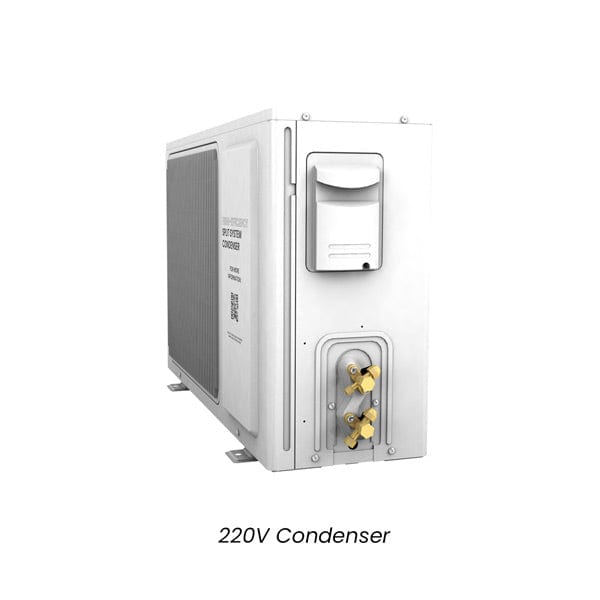

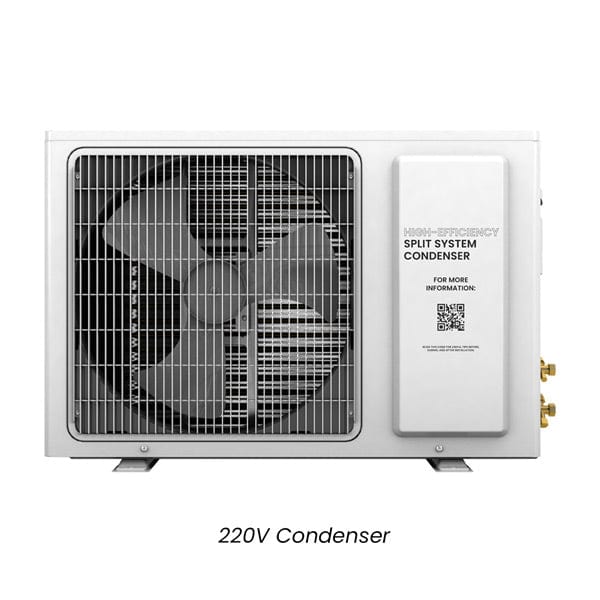

• The condenser installs remotely (garage, mechanical room, attic with ventilation, or outdoors with protective housing).
• Refrigerant lines connect both components (up to 100 line feet).

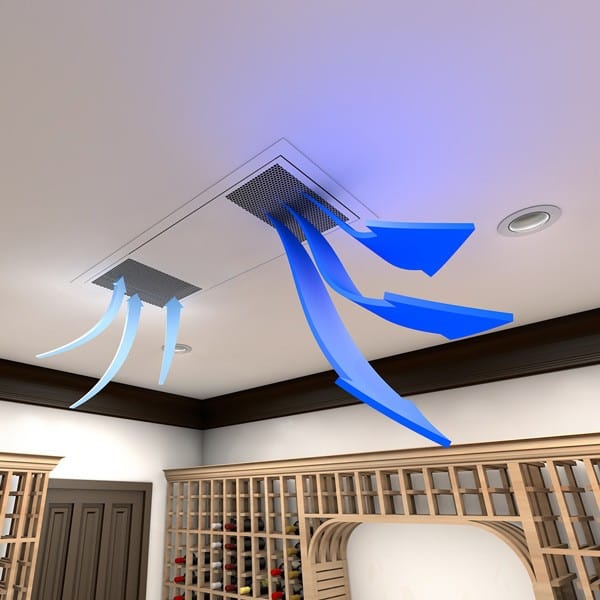

Because warm air rises, the ceiling-mounted evaporator draws in warmer air, cools it, and redistributes conditioned air evenly to maintain stable storage conditions.

Performance & Capacity

• Recommended Cellar Size: Up to 2,000 cu. ft.*
• BTU/h (at 85°F condenser air intake): 5,254
• Horsepower: 2.06 HP
• Airflow: 321 CFM

*Capacity assumes proper insulation, sealed construction, and minimal thermal load from glass or exterior walls. Glass-heavy designs require load calculation.

Temperature Performance

The system can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature, assuming:

• Proper ventilation at condenser location
• Correct refrigerant charge
• Adequate cellar insulation
• Functional vapor barrier

Technical Specifications

Refrigerant

• R-134a

Electrical Requirements

Evaporator

• 115V
• 15 amp dedicated circuit required
• Running Amps: 1

Condenser

• 115V
• 15 amp dedicated circuit required
• LRA: 43
• RLA: 8

Electrical capacity must be confirmed before installation.

Dimensions & Weight

Evaporator

• 35.75” L x 12.75” H x 14.5” W
• Weight: 80 lbs

Condenser

• 16.08” L x 16.23” W x 12.61” H
• Weight: 66 lbs

Drain Line

• ¼” ID clear plastic tubing (not included)

Installation Configuration

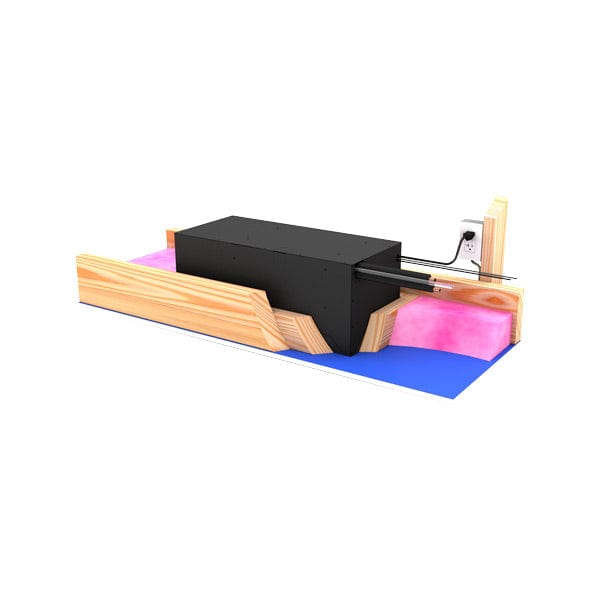

• Evaporator installs flush in cellar ceiling.
• Condenser can be installed up to 100 line feet from evaporator.
• Outdoor condenser installation requires protective housing.
• Line set routing must follow manufacturer specifications.

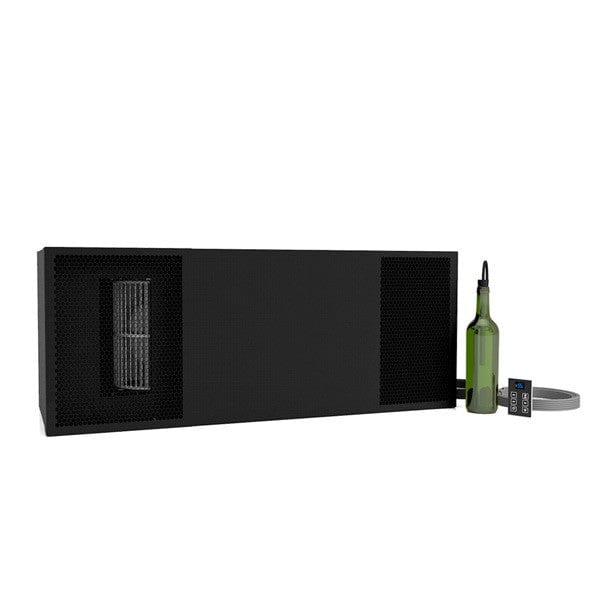

Control System & Monitoring

Advanced Digital Display

• 50 ft. cable
• Advanced system protection alerts
• Remote monitoring capability

Liquid Bottle Probe

• 50 ft. cable
• Measures wine temperature (liquid) rather than ambient air
• Improves temperature accuracy and wine stability

Manuals for WhisperKOOL Ceiling Mount 8000 Ductless Split:

Please click below to read and download the owner manual for this cooling system.

• Owner's Manual for WhisperKOOL Ceiling Mount 8000 Ductless Split System
• Technician's Manual for WhisperKOOL Ceiling Mount 8000 Ductless Split System

Please click below to view all product specifications for WhisperKOOL Ceiling Mount 8000 Split Ductless Wine Cellar Cooling Unit.

• Product Features & Specifications for WhisperKOOL Ceiling Mount 8000 Ductless Split System

A limited 2-year limited warranty (parts & labor) is offered with all split systems.

• Warranty Information for WhisperKOOL Ceiling Mount 8000 Ductless Split System

New 24-volt thermostat conversion kit for WhisperKOOL split systems

• Owner's Manual (24V Thermostat Conversion Kit) for WhisperKOOL Ceiling Mount 8000 Ductless Split System
• Technician's Manual (24V Thermostat Conversion Kit) for WhisperKOOL Ceiling Mount 8000 Ductless Split System

Construction Requirements

The Ceiling Mount 8000 depends on proper cellar construction:

• Vapor barrier installed on warm side
• Sealed penetrations
• Insulated ceiling and walls
• Weather-stripped cellar door
• Proper drainage slope

Without these, condensation, excessive runtime, and system failure may occur.

Optional Upgrades & Accessories

Exterior Protective Housing

Required for outdoor condenser installations. Protects against weather exposure.

• Galvanized steel base
• Hinged access panel
• Rain trough design
• Dimensions: 20” W x 20” H x 27” D

Condenser Coil Coating

• Recommended for coastal or salt-air environments to prevent corrosion.

24V Thermostat Conversion Kit

Allows integration with third-party smart thermostats.

Important:

• The system will NOT include the standard WhisperKOOL control or bottle probe when converted.
• WhisperKOOL does not provide smart thermostats.
• Manufacturer support does not cover third-party thermostat issues.
• A compatible 24V thermostat must be purchased separately.

Recommended only for advanced HVAC installations requiring automation.

Warranty

Two-Year Limited Warranty (Parts & Labor)

Warranty is valid only when:

• Installed by licensed HVAC-R technician
• Installed per manufacturer specifications
• Cellar construction meets requirements

Professional Sizing Assistance

Selecting the correct cooling capacity prevents premature compressor failure and performance instability.

We can assist with sizing based on:

• Room dimensions
• Insulation R-values
• Glass percentage
• Ambient climate
• Condenser location

Contact our team before purchase if unsure.
