WhisperKOOL  |  SKU: S-WKCMMINI-115-CW5
New arrival

WhisperKOOL Mini Ceiling Mount Ductless Split Wine Cellar Cooling System

$7,299.00 USD
Title

Delivery and Shipping

We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy

Price Match Guarantee

Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)

Returns

Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy

Shop with Confidence
As an authorized U.S. dealer, every order is verified and backed by full manufacturer warranty. Contact our team if you need an official quote, invoice, or product guidance before ordering

Genuine Products — Manufacturer Warranty Included
All items sold at The Imperial Luxe are 100% authentic and backed by the manufacturer’s warranty.

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)

Description

WhisperKOOL Mini Ceiling Mount Ductless Split Wine Cellar Cooling System

The WhisperKOOL Mini Ceiling Mount Ductless Split System is a compact and efficient cooling solution specifically designed for small wine cellars where space is limited. Engineered to maximize storage capacity, this system mounts directly to the ceiling, keeping walls clear for racking while delivering consistent and reliable cooling performance.

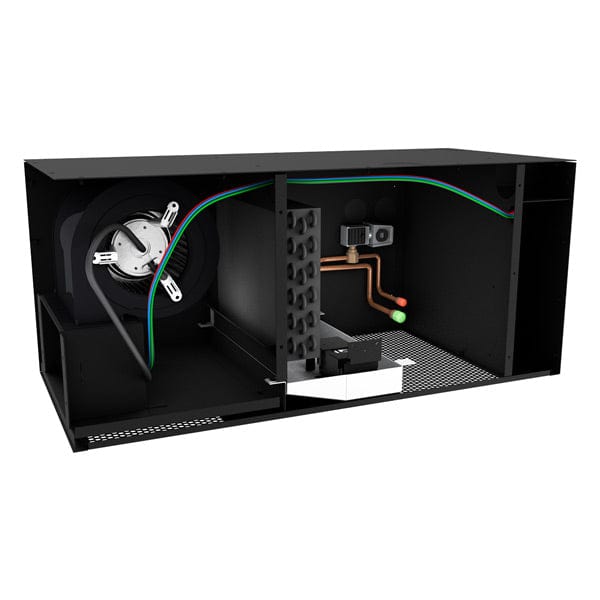

This ductless split system efficiently draws in warm air that naturally rises to the ceiling, cools it, and redistributes conditioned air evenly throughout the cellar. Its advanced airflow design, combined with a centrifugal blower and adjustable fan speeds, ensures balanced temperature control and quiet operation.

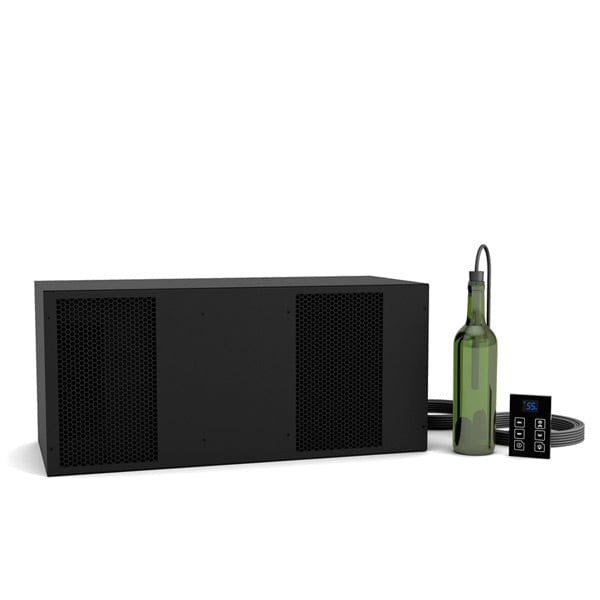

Designed for convenience and performance, the system includes a KDT digital touch display that can be installed remotely, along with a liquid-temperature bottle probe for precise monitoring of actual wine temperature. Additional features such as a built-in condensate pump, air filtration system, and cold weather start kit enhance reliability and long-term operation.

Ideal for residential wine collectors, the WhisperKOOL Mini Ceiling Mount system provides an effective and space-saving cooling solution without requiring ductwork, making it perfect for custom wine cellars with limited installation space.

Is the WhisperKOOL Mini Ceiling Mount Right for Your Cellar?

The WhisperKOOL Mini Ceiling Mount is designed for properly insulated residential wine cellars up to 500 cubic feet. It is best suited for installations where wall space is limited and a split system is preferred to reduce in-cellar noise and vibration.

This unit requires:

  • R19 minimum wall insulation
  • R30 ceiling insulation
  • A continuous 6 mil vapor barrier
  • A sealed cellar door
  • A dedicated 15-amp electrical circuit
  • Professional HVAC installation

If these conditions are not met, cooling performance may decline and system lifespan may be reduced.

Best For

  • Fully insulated residential wine cellars under 500 cu. ft.
  • Ceiling installations where wall space is limited
  • Remote condenser placement (up to 100 ft away)
  • Homeowners seeking quieter split-system operation

Not Ideal For

  • Glass-heavy wine walls without load adjustments
  • Stone or concrete rooms without proper insulation
  • Commercial wine storage
  • Condenser environments exceeding 110°F intake air
  • Poorly sealed or improperly vapor-barriered rooms

If your cellar exceeds 500 cu. ft. or includes significant glass exposure, consider upgrading to a larger model such as the Ceiling Mount 4000.

How This System Works

The Mini Ceiling Mount is a split cooling system:

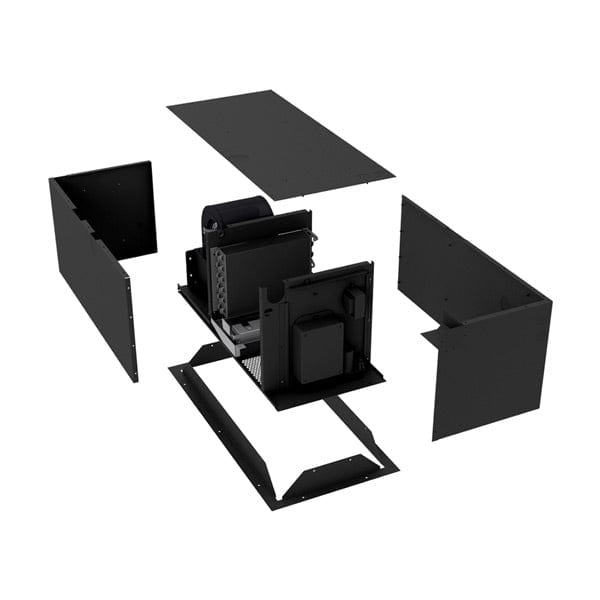

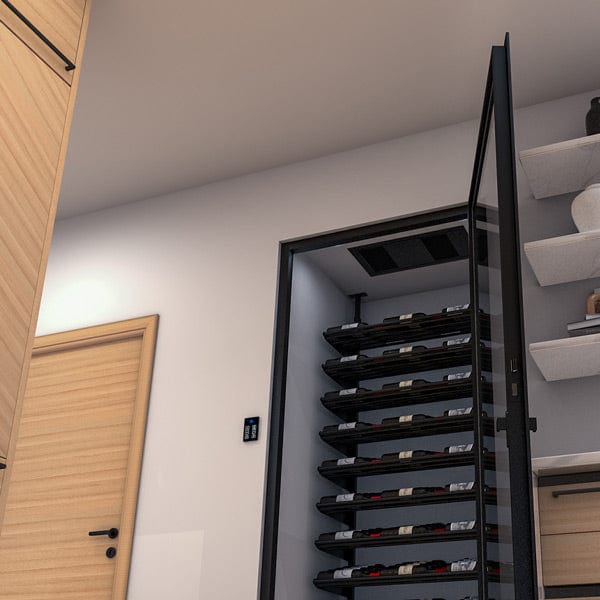

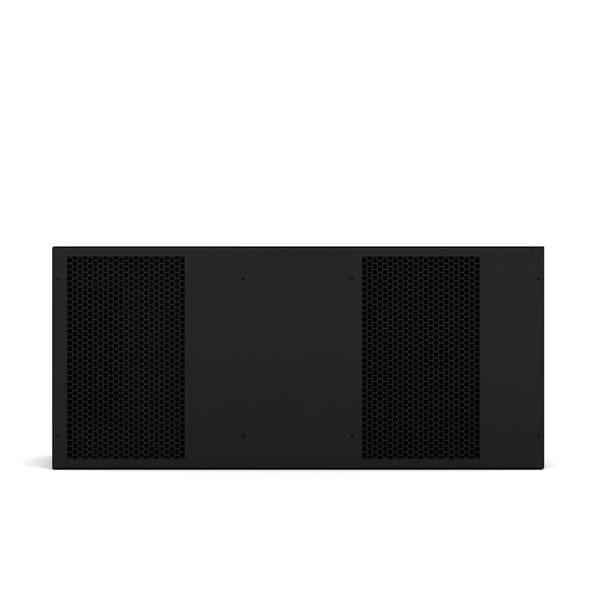

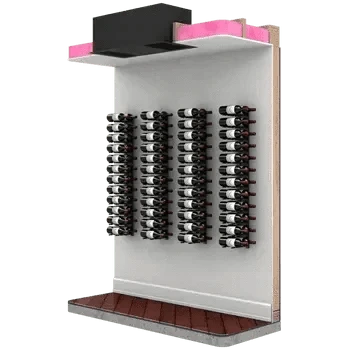

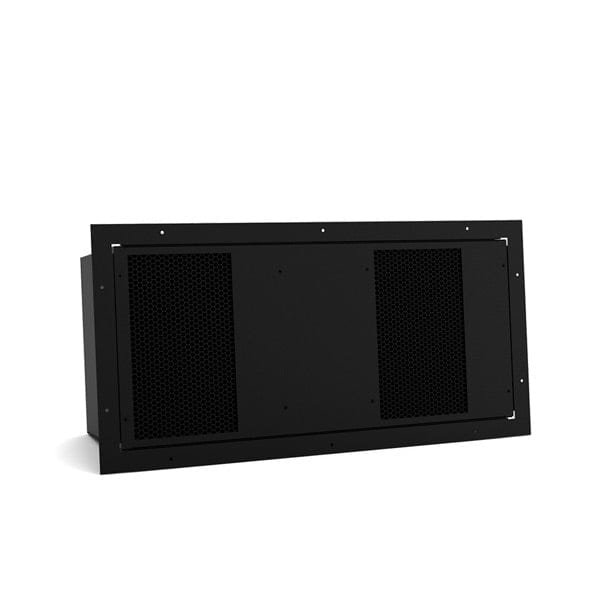

  • Evaporator (Fan Coil Unit) installs through the cellar ceiling

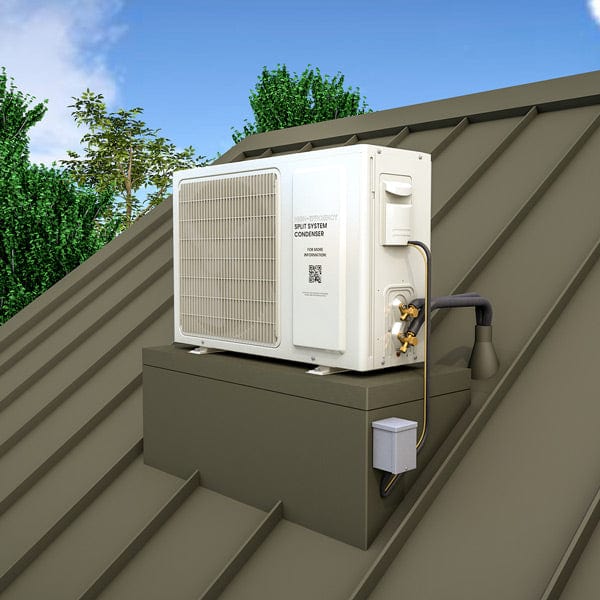

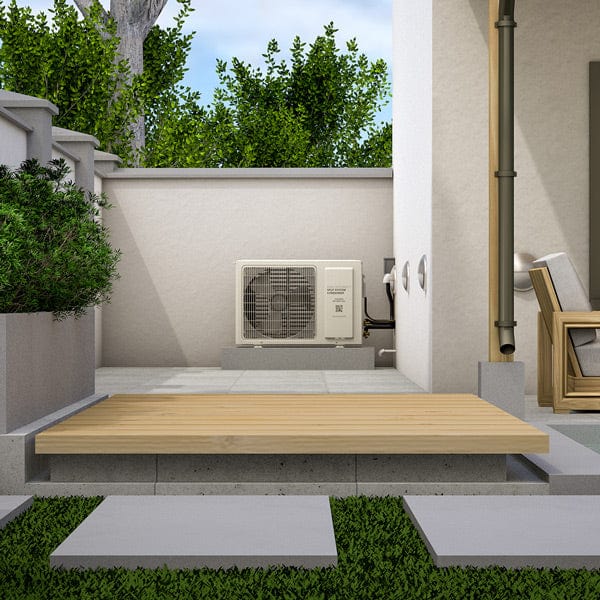

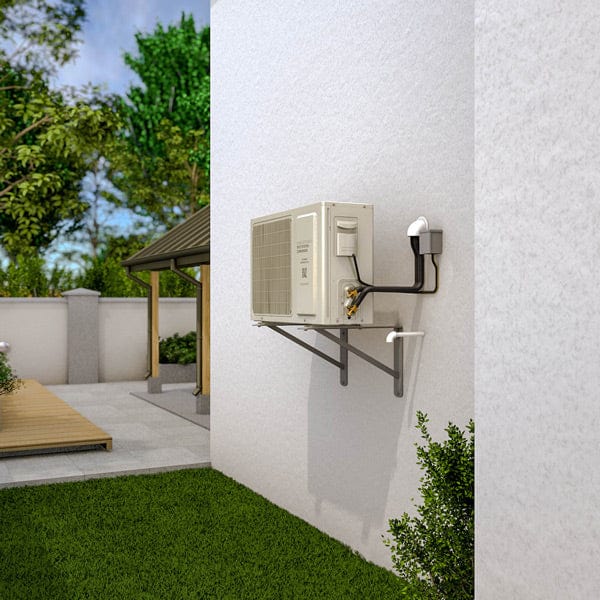

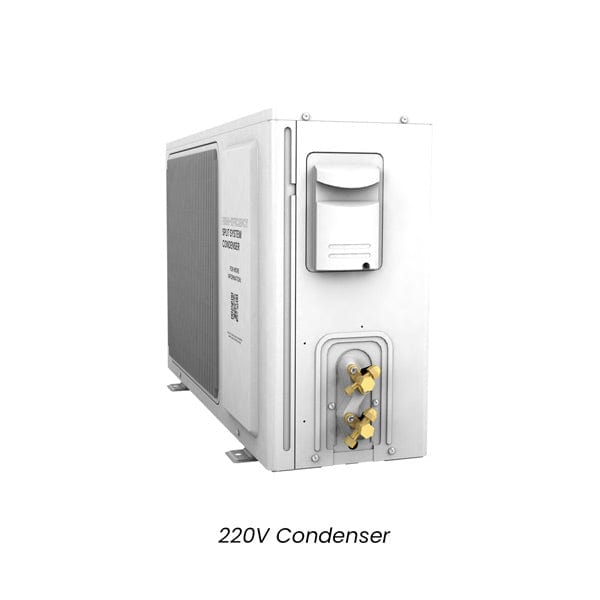

  • Condenser (Air-Cooled Unit) installs remotely (attic, mechanical room, or exterior with protective housing)

The system draws warm air from the ceiling, cools it, and redistributes conditioned air throughout the cellar. Because the compressor is located outside the cellar, vibration and operational noise inside the room are minimized.

Performance Capabilities & Limits

  • Designed to maintain 55°F cellar temperature
  • Performance rated at 2167 BTU/h at 85°F condenser intake temperature
  • Can operate with condenser intake air up to 110°F

Above 110°F intake temperature, cooling efficiency may decline. Installations in unconditioned garages or extreme desert climates may require a larger system.

Humidity is reduced during cooling cycles. This unit does not independently control humidity.

Technical Specifications

Cooling Capacity

  • 2167 BTU/h (at 85°F condenser intake air temperature)
  • BTU output assumes a fully insulated, sealed cellar. Glass, exterior walls, or inadequate insulation increase heat load.

Maximum Cellar Size

  • Up to 500 cubic feet

Sizing assumes:

  • R19 wall insulation
  • R30 ceiling insulation
  • Proper vapor barrier
  • Minimal glass exposure

Undersized systems may fail prematurely or struggle to reach set temperature.

Temperature Delta

  • Maintains 55°F cellar temperature with condenser intake air up to 110°F under proper insulation conditions.

Refrigerant

  • R-134a refrigerant
  • Commonly used in wine cellar systems. Subject to environmental regulation changes over time.

Electrical Requirements

  • 115V (15-amp dedicated circuit required)
  • Sharing the circuit with other appliances may cause performance instability or breaker trips.

Amperage

  • Evaporator: 1 running amp
  • Compressor: LRA 26 / RLA 4.4

Horsepower

  • 1/6 HP

Noise Level

  • Approximately 51 dBA

  • Comparable to a quiet conversation.

Dimensions

  • Evaporator: 22.05”L x 11.08”W x 11.34”H
  • Condenser: 13.97”L x 15.85”W x 9.86”H

Weight

  • 50 lbs (Evaporator)
  • 50 lbs (Condenser)

Line Set Requirements

  • Liquid line: 1/4”
  • Suction line:
    • 3/8” (under 50 ft.)
    • 1/2” (over 50 ft.)

Correct line sizing is critical for compressor longevity and oil return.

Drain Line

  • 1/4” ID clear plastic tubing

Installation

  • Evaporator installs through the cellar ceiling.
  • Condenser may be installed up to 100 line feet away.
  • Professional HVAC-R technician required. Failure to use qualified installation may void warranty.

Thermostat

  • Advanced digital display with 50-ft cable
  • Includes 50-ft liquid-temperature bottle probe for accurate wine temperature measurement.

Warranty

  • Two-year limited warranty (parts and labor)
  • Warranty requires proper professional installation.

Manuals for WhisperKOOL Mini Ceiling Mount Ductless Split:

Mini Ceiling Mount vs Ceiling Mount 4000

Feature Mini Ceiling Mount Ceiling Mount 4000
Max Cellar Size 500 cu ft 1000+ cu ft
BTU Output 2167 Higher capacity
Best Use Case Small residential Larger residential
Glass Suitability Limited Better tolerance
Electrical 115V May require higher amp

If your cellar includes large glass panels or exceeds 500 cubic feet, upgrading reduces strain and improves long-term reliability.

Installation Considerations

Most system failures result from:

  • Inadequate vapor barriers
  • Undersized equipment
  • Excessive condenser heat exposure
  • Shared electrical circuits
  • Improper line set sizing

Confirm insulation and vapor barrier integrity before selecting a cooling system.

Optional Accessories

  • Exterior Protective Housing
    Required for outdoor condenser installations. Protects from rain and environmental exposure.
  • Condenser Coil Coating
    Recommended for coastal environments to protect against salt air corrosion.
  • 24V Thermostat Conversion Kit (Optional)
    Allows integration with compatible smart thermostats (thermostat not included).

Final Guidance

The WhisperKOOL Mini Ceiling Mount is a strong solution for small, properly insulated residential wine cellars where ceiling installation is preferred and condenser noise separation is desired.

Proper sizing and installation determine long-term reliability. When in doubt, verify insulation values and total heat load before selecting a system.
